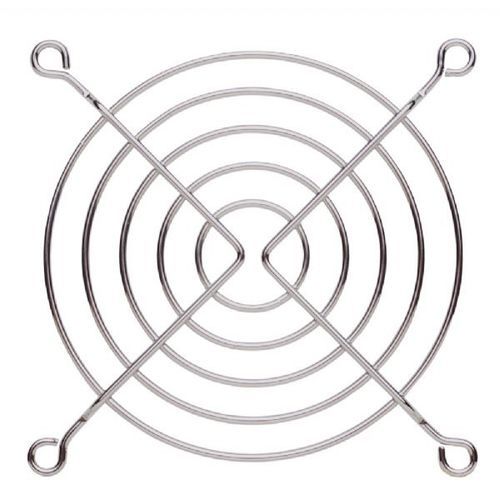

Metal ventilation grill EMG series

mesh

Overview
Standard wire-form metal fan guards for industrial and electronic cooling applications. Compatible with a wide range of EA/EC/ED series fans and available in multiple EMG model variants to match fan diameters from 25 mm to 280 mm.

Specification
Spec. - Fan Size (mm / in) - Matching EA Fan Series - Metal Fan Guard Model
25 mm / 1.0 in - ED25XX Series - EMG25-2U
40 mm / 1.57 in - ED40XX Series - EMG30-2
45 mm / 1.77 in - ED45XX Series - EMG40-2
50 mm / 2.05 in - ED50XX Series - EMG50-3
60 mm / 2.36 in - EA60XX Series; ED60XX Series - EMG60-4
70 mm / 2.37 in - ED70XX Series - EMG70-5A
80 mm / 3.15 in - EA80XX Series; EC80XX Series; ED80XX Series - EMG80-18
92 mm / 3.62 in - EA92XX Series; EC92XX Series; ED92XX Series - EMG92-16
120 mm / 4.7 in - EA12XX Series; EC12XX Series; ED12XX Series - EMG109-15A; EMG109-17
127 mm / 5.0 in - EA1338 Series; ED1338 Series - EMG127-9
172 mm / 6.7 in - EA15XX / EA17XX Series; ED15XX / ED17XX Series - EMG172-10H; EMG172-10HA
225 mm / 8.85 in - EA2280 Series - EMG225-12U
254 mm / 10.0 in - EA25XX Series; ED2589 Series - EMG254-9D
280 mm / 11.0 in - EA2880 Series - EMG280-17U

Available guard models

• EMG25-2U
• EMG30-2
• EMG40-2
• EMG50-3
• EMG60-4
• EMG70-5A
• EMG80-18
• EMG92-16
• EMG109-15A
• EMG109-17
• EMG127-9
• EMG172-10H
• EMG172-10HA
• EMG225-12U
• EMG254-9D
• EMG280-17U

Characteristics / technical specifications

• Product name: Metal Fan Guards
• Brand: Electronic Associates (Taiwan) Ltd.
• Type: Standard wire-form fan guards
• Material: Metal (wire form)
• Compatible fan sizes: 25 mm up to 280 mm (see specification table for full list)
• Matching fan series: EA series, EC series, ED series (various series per size)
• Available guard model numbers: EMG25-2U, EMG30-2, EMG40-2, EMG50-3, EMG60-4, EMG70-5A, EMG80-18, EMG92-16, EMG109-15A, EMG109-17, EMG127-9, EMG172-10H, EMG172-10HA, EMG225-12U, EMG254-9D, EMG280-17U
• Documentation: product datasheets available per model (EMG25-2U.pdf, EMG30-2.pdf, EMG40-2.pdf, EMG50-3.pdf, EMG60-4.pdf, EMG80-18.pdf, EMG92-16.pdf, EMG109-15A.pdf, EMG109-17.pdf, EMG127-9.pdf, EMG172-10H.pdf, EMG172-10HA.pdf, EMG225-12U.pdf, EMG254-9D.pdf, EMG280-17U.pdf)
