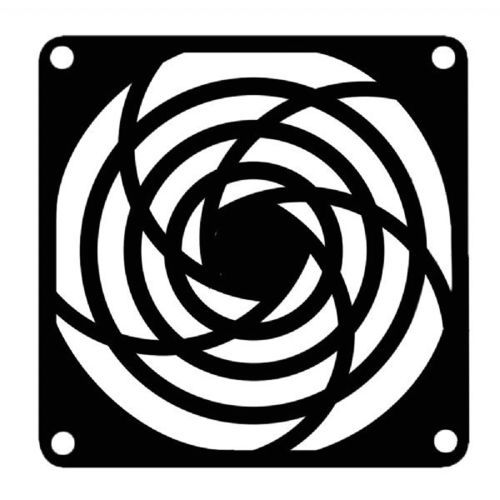

Plastic ventilation grill E series

Description
Standard molded plastic fan guards designed to cover axial fan blades and limit access to rotating parts. Compatible with multiple EA, EC and ED fan series and sizes.

Key characteristics

• Material: molded plastic
• Application: axial fans (EA/EC/ED series)
• Size range: 25–280 mm (1.0–11.0")
• Mounting: designed to match manufacturer fan series and dimensions

Specifications

• 25 mm (1.0") — Matching: ED25XX Series — Guard model: not specified
• 40 mm (1.57") — Matching: ED40XX Series — Guard model: EPG-40P
• 45 mm (1.77") — Matching: ED45XX Series — Guard model: not specified
• 50 mm (2.05") — Matching: ED50XX Series — Guard model: not specified
• 60 mm (2.36") — Matching: EA60XX Series / ED60XX Series — Guard model: EPG-60P / EPG-60P2 / EPG-60P4
• 70 mm (2.37") — Matching: ED70XX Series — Guard model: not specified
• 80 mm (3.15") — Matching: EA80XX Series / EC80XX Series / ED80XX Series — Guard model: EPG-80P / EPG-80P2 / EPG-80P2A / EPG-80P4
• 92 mm (3.62") — Matching: EA92XX Series / EC92XX Series / ED92XX Series — Guard model: EPG-92P / EPG-92P2 / EPG-92P4 / EPG-92P25F
• 120 mm (4.7") — Matching: EA12XX Series / EC12XX Series / ED12XX Series — Guard model: EPG-119P2 / EPG-119P4 / EPG-120P / EPG-120P2 / EPG-120P4 / EPG-120P25F
• 127 mm (5.0") — Matching: EA1338 Series / ED1338 Series — Guard model: EPG-127P2
• 172 mm (6.7") — Matching: EA15XX / EA17XX Series / ED15XX / ED17XX Series — Guard model: EPG-172P / EPG-172P2
• 180 mm (7.0") — Matching: EA18XX Series / ED18XX Series — Guard model: not specified
• 205 mm (8.85") — Matching: ED2072 Series — Guard model: not specified
• 225 mm (8.85") — Matching: EA2280 Series — Guard model: EPG-225B
• 254 mm (10.0") — Matching: EA25XX Series / ED2589 Series — Guard model: not specified
• 280 mm (11.0") — Matching: EA2880 Series — Guard model: EPG-280B

Notes
Standard molded plastic fan guards offered to match a wide range of EA fan series and sizes. Available guard model codes are listed in the specification table.
