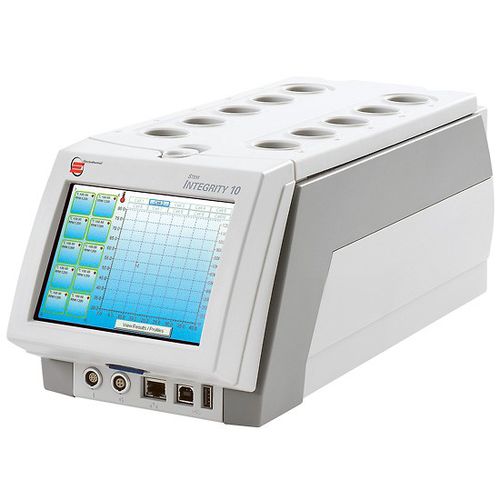

Reactor for the pharmaceutical industry Integrity 10

laboratoryprocessautomated

The Integrity 10 Reaction Station enables you to conduct 10 different reactions simultaneously within the same reaction unit, each reaction being conducted within its own cell, at its own individual temperature and stir rate. The Integrity 10 Reaction Station is an excellent screening tool that can be used in most laboratories. It features: •10 individual, independently controllable cells •Temperature range of -30°C to 150°C •Stirring rate of 350 rpm - 1200 rpm •For sample volumes of 1ml - 25ml •Optional attachments for refluxing, and working under inert conditions •Optional multi-infrared probes for solubility/crystallisation studies •Local control via colour touchscreen If desired, fast heating and cooling rates can be selected, with temperature ramps of between 0.1°C/min to 5°C/min. There is also a crash function for even faster temperature changes, which is ideal for kinetic determinations. Extreme temperature accuracy is guaranteed, with a temperature stability of ± 0.2°C and a maximum set point overshoot of 0.1°C. The temperature may be maintained either through the block itself or by using a probe within each cell's solution.
