Electric testing device

fixed

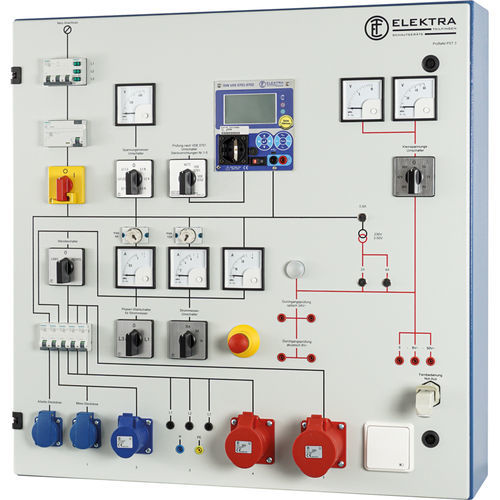

The static Elektra testing panels feature robust steel plate housing powder coated in RAL 7035/5007. The line for the mains connection can be fed in from above or below. The mobile testing devices are built into a rigid multiplex wood / aluminium case (PGTK...) or a rigid plastic case (PGTL...). The fronts of all testing panels feature a mimic diagram serving as an operator guide. All testing panels (except PGTL...) are equipped with a lockable main switch with low-voltage triggering, a residual current circuit breaker, 30 mA trip current and an emergency-off button. A connection socket for an external emergency-off button is additionally fitted into the static testing panels. All static testing panels can optionally be supplied with built-in or removable device testers. All device testers feature the residual current measurement process for measuring earthing conductor and/or contact current. Elektra testing panels are supplied in the following designs: In steel plate switching cabinet housing as a static testing panel In duct construction form as the optimum solution on glazed walls or for free-standing test stations In suitcase design as portable test equipment for mobile use on site
