Adhesimeter cross hatch cutter SecoTest

Overview
The cross cut test enables assessment of adhesion of single and multiple coatings on hard (e.g. steel) and soft (e.g. wood) substrates. SecoTest is a cross hatch cutter designed to perform tests according to DIN EN ISO 2409 and ASTM D3359-02; ISO 4624 can be applied for quantitative adhesion measurement.

Product information
SecoTest features a sturdy holder for the six-edge tool-steel multi-cutting blade and a rotatable non-slip grip that prevents blade canting. The cutter head is movable to allow precise positioning and repeatable incision patterns. For reproducible results, condition the test specimen as recommended (see DIN EN ISO 2409, section 6) and record ambient conditions for on-site tests.

Application
Cross hatch cutter for evaluation of coating adhesion (paints, lacquers, plastics) on hard and soft substrates in laboratory and field conditions.

Features

• Tool-steel multi-cutting blade with six cutting edges; available in 4 variants with standard cutting-edge geometries
• Multi-cutting blade with six edges for extended use
• Movable cutter head for accurate positioning
• Sturdy blade holder and rotatable non-slip grip to prevent blade canting
• Includes magnifier and brush for assessment and cleaning

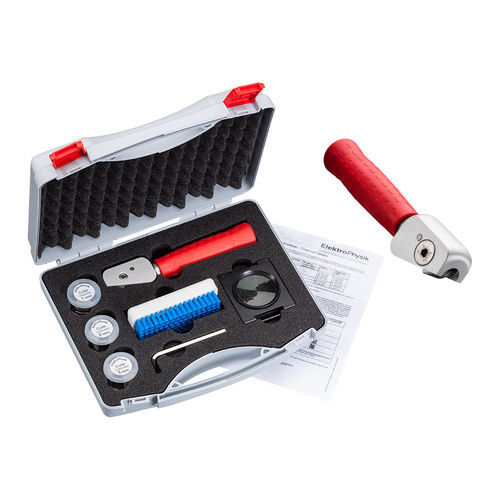

Supply schedule

• Cross hatch cutter SecoTest
• Multi-cutting blade
• Magnifier
• Brush
• Short instructions
• Plastic carrying case

Standards and testing notes
Operates according to DIN EN ISO 2409 and ASTM D3359-02. For quantitative adhesion determination, apply the procedure defined in ISO 4624. Test specimen conditioning (see relevant standards) and recording ambient conditions on site are recommended to ensure reproducibility.

Technical specifications

• Product / model: SecoTest (cross hatch cutter)
• Series: SecoTest series
• Blade type: Tool-steel multi-cutting blade, six edges; 4 variants available (standard cutting-edge geometry)
• Blade holder: Sturdy holder for six-edge multi-cutting blade
• Grip: Rotatable non-slip grip to prevent blade canting
• Cutter head: Movable cutter head
• Intended substrates: Hard substrates (e.g. steel) and soft substrates (e.g. wood)
• Included accessories: Magnifier, brush, short instructions, plastic carrying case
• Applicable standards: DIN EN ISO 2409, ASTM D3359-02; ISO 4624 for adhesion measurement
• Use notes: Test specimen conditioning recommended (see DIN EN ISO 2409, section 6); record ambient conditions for on-site tests
