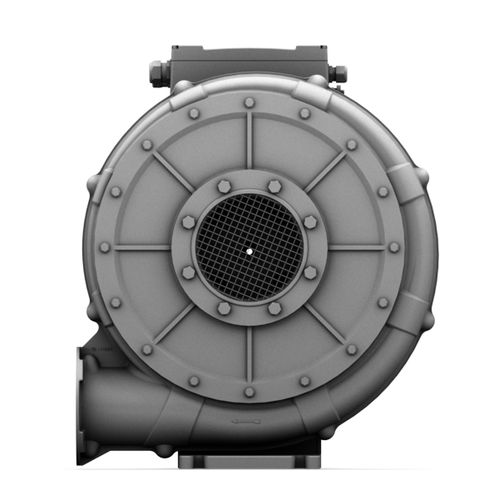

Air blower HRD-FU/FUK series
radialsingle-stagewith frequency converter

air blower
air blower
air blower
air blower
air blower
Add to favorites
Compare this product

Characteristics

Type
air
Technology
radial
Number of stages
single-stage
Other characteristics
with frequency converter, direct-drive, high-pressure
Flow rate

Max.: 100 m³/min (3,531 ft³/min)

Min.: 6 m³/min (212 ft³/min)

Operating pressure

Max.: 17,300 Pa (2.509 psi)

Min.: 4,900 Pa (0.711 psi)

Nominal power

Max.: 20 kW (27.19 hp)

Min.: 0.75 kW (1.02 hp)

Description

Elektror presents HRD-FU/FUK high pressure blowers. They provide air flow up to 100 m³/min and a total pressure difference up to 17,300 Pa. They have a wear-free, direct drive via offset (FU) or mounted (FUK) frequency converter. They offer a higher rotation up to 105 Hz (approx. 6,200 rpm). The housing is made of cast Aluminium. The impellers primarily bent backwards are made of aluminiu as well. The blowers are mostly corrosion-resistant.
