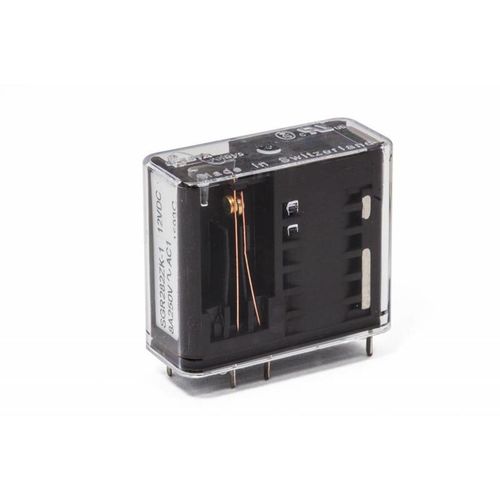

24VDC electromechanical relay SGR282 ZK VAR112VDC110VDC6VDC
Add to favorites
Compare this product
Characteristics
- Control voltage
- 24VDC, 12VDC, 110VDC, 6VDC, 48VDC, 5VDC, 60VDC
- Mounting
- for printed circuit boards
- Other characteristics
- with guided contacts, IEC
- Switching current
Max.: 8,000 mA
Min.: 4 mA
Description
The SGR 282 ZK contact variant 1 is a classic two-pole relay with forcibly guided contacts according to IEC 61810-3 with one normally open contact and one normally closed contact at 5.08 mm pitch. Thanks to the overmoulded coil design, it is also suitable for applications in the ATEX area. Maximum system availability is achieved through the notched crown contact. The relay has a sensitive coil and the load current range is 4 mA to 8 A.
Switching current: 4mA - 8A
Nominal coil power: 700mW
Test voltage (rms): 4000V
The following product variants are available in the ELESTA shop:
• Coil Voltage: 12 VDC
• Coil Voltage: 24 VDC
