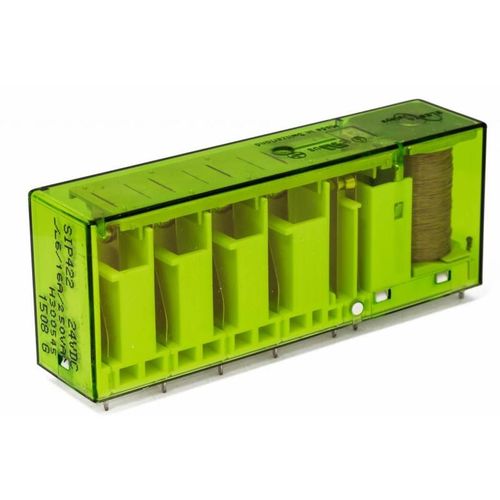

24VDC electromechanical relay SIP42212VDC110VDC6VDC
Add to favorites
Compare this product
Characteristics
- Control voltage
- 24VDC, 12VDC, 110VDC, 6VDC, 48VDC, 60VDC
- Contact configuration
- 2 NO, 4 NO, 1 NO/NC
- Mounting
- for printed circuit boards
- Other characteristics
- with guided contacts, IEC
- Switching current
Min.: 10 mA
Max.: 16,000 mA
Description
Extremely powerful 6-pole relay with forcibly guided contacts according to IEC 61810-3 for switching loads up to 16 A. Crown contacts for high switching reliability at the 2 read-back contacts and 4 power contacts for peak currents up to 16 A and 60 A.
Switching current: 5mA - 16A
Nominal coil power: 1300mW
Test voltage (rms): 5000V
The following product variants are available in the ELESTA shop:
• Coil Voltage: 12 VDC
• Coil Voltage: 24 VDC
