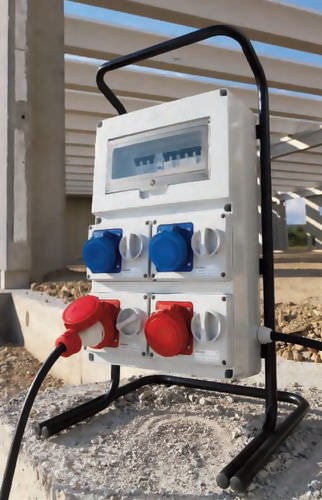

Equipped electrical enclosure 16 - 32 A | ASD 690 series
ABSoutdoorfor construction site

equipped electrical enclosure
equipped electrical enclosure
Add to favorites
Compare this product


Characteristics

Type
equipped
Material
ABS
Application
outdoor, for construction site, power distribution
Other characteristics
pre-assembled, locking

Description

CONSTRUCTIVE TECHNICAL CHARACTERISTICS Material: made of technopplymer with ABS base. Standard colour: Grey RAL 7035. Shock resistance: 6j. Abnormal heat resistance (Glow Wire Test): up to 650°C. Installation temparature: min. -15°C, max +60°C. Smoked anti-scratch door with key lock safety system and blocking system in open position for easier switches on-off. Steel plated DIN rail for protection devices installation featuring deepness regulation. 90° degrees openable hinged door with holding position feature to ease maintenance operations. Pre-blanked pipes entrance of different sizes. Provided with screws hiding caps for double insulation. Dissipated power values according to CEI 23-49 standard. Made in compliance with CEI 23-49 ED.1996, IEC 60670 standards.
