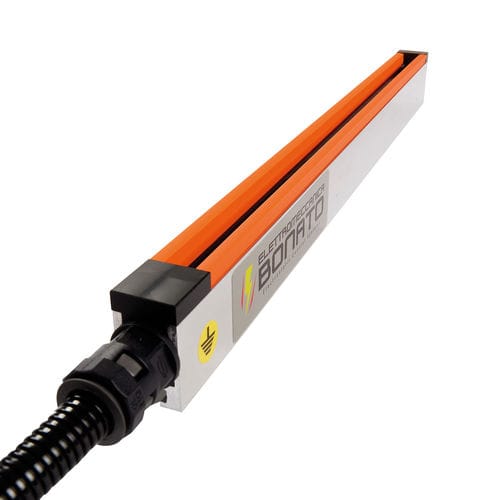

ATEX anti-static bar EX-ABSL-RC

The EX-ABSL-RC antistatic bar is an ATEX-certified antistatic bar for explosive atmospheres. The EX-ABSL-RC antistatic bar has been designed to be installed in high-speed machines and is highly efficient in removing electrostatic charges. The antistatic bar has a PVC core where all electronic components are embedded in epoxy resin, ensuring reliability and long service life. The emitters are connected to the high voltage through special resistors, ensuring no risk to the operator in case of accidental contact. The antistatic bar has a slot where M6 screws can be inserted for mounting. Lengths - from 100 mm to 6000 mm Working distance - 20-200 mm Operating voltage - 7000 VAC Power supply - APS4X – APSX2 Weight - 1,1 kg / m Maximum machine speed - 500 m / min Certification - ATEX issued by TÜV II 2G Ex mb IIB T6 Gb II 2D Ex mb IIIB T85°C DbOperating temperature - -20° C – + 60° C
