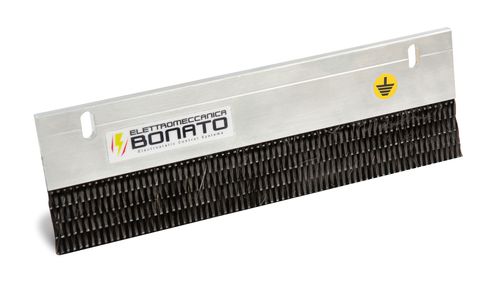

Strip brush AB

scratchingcarbon fiberanti-static

Our AB carbon fiber anti-static brushes eliminate electrostatic charges that form on material surfaces during processing. The brush bristles are very fine and soft, allowing the anti-static brush to contact the material to be discharged without risk of scratching. Anti-static brushes do not necessarily need to be in contact with the material; they can be mounted at a distance of 2–5 mm if the charge is not very high. Furthermore, they do not require power supplies, only grounding, and are very easy to install. Our anti-static brushes can be manufactured in various lengths according to customer requirements. Electrical resistance - 1,7X10-³ Ohm cm Ground wire - 4-6 mm² yellow-green Operating temperature - 0-150 °C Filament diameter - 4X10-³ mm Lengths - Max 4000 mm Weight - 540 gr/ml
