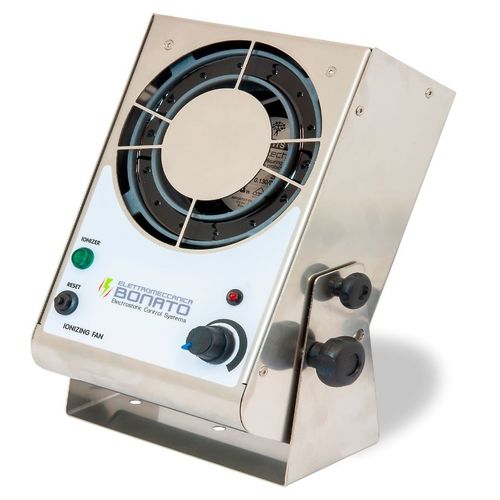

Ionizing air blower IF-01
rotarybenchfan

Ionizing air blower - IF-01 - Elettromeccanica Bonato sas - rotary / bench / fan
Ionizing air blower - IF-01 - Elettromeccanica Bonato sas - rotary / bench / fan
Ionizing air blower - IF-01 - Elettromeccanica Bonato sas - rotary / bench / fan - image - 2
Add to favorites
Compare this product

Characteristics

Type
ionizing air
Technology
rotary
Applications
fan, bench
Other characteristics
antistatic
Flow

Max.: 150 m³/h
(5,297.2 ft³/h)

Min.: 0 m³/h
(0 ft³/h)

Weight

3.3 kg
(7.28 lb)

Description

The IF-01 ionizing fan is designed to neutralize static charges very quickly and achieve a balance of +/- 3V. Its emitters are connected to high voltage via resistors and encapsulated in epoxy resin to ensure maximum ionizing effect while making the emitters safe to touch. Thanks to its design, cleaning the emitters is also very simple. The IF-01 ionizing fan features one LED indicating the presence of voltage, while the other indicates correct ionization functioning. The ionized airflow is adjustable and can reach a distance of 1.2 m, making it suitable for various applications, especially in the electronics, plastics, medical, and RFID industries. Working distance - 1200 mm max Weight - 3,3 kg pa_motor-consumption - 151 Controllo flusso d‘aria - Manuale, 0-150 m³/ora pa_motor-power-supply - 147 Operating temperature - 0-60°C Power supply - Integrated Certification - CE
