AC/AC power supply PS-AC
adjustable

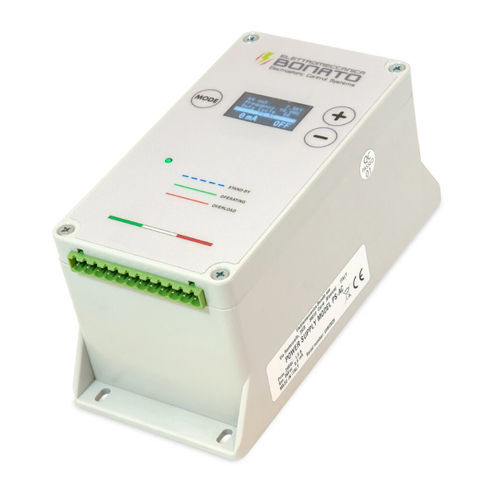

AC/AC power supply - PS-AC - Elettromeccanica Bonato sas - adjustable
AC/AC power supply - PS-AC - Elettromeccanica Bonato sas - adjustable
Add to favorites
Compare this product
Go to the Elettromeccanica Bonato sas website for more information

Characteristics

Type
AC/AC
Output
adjustable
Input voltage

24 V

Output voltage

Min.: 1 V

Max.: 7.5 V

Current

0.5 mA

Power

30 W

Output frequency

Min.: 0.5 Hz

Max.: 20 Hz

Description

The PS-AC power supply generates an adjustable pulsed voltage between 1 and 7.5 kV, with an adjustable frequency from 0.5 to 20 Hz. The duty cycle is also adjustable from 20/80 to 80/20 positive/negative. The controls are highly intuitive and easy for the operator to use, thanks to the OLED display showing the set voltage, frequency, and duty cycle, as well as actual current consumption. It has 2 AC voltage outputs. Frame material - ABS Weight - 1,3 kg Connections - 2 Display OLED Operating temperature 0-60°C Polarity Alternating

Catalogs

PS-AC
PS-AC
2 Pages
