Ionizing gun AG-04

compressed airmanualelectrostatic

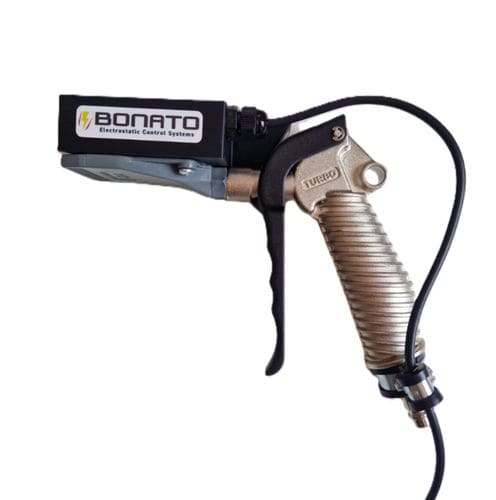

The antistatic gun AG-04, shockless, is a compressed air gun with an ions emitter nozzle. This allows that the air flow becomes ionized when you push the trigger and so able to eliminate the electrostatic charges, which are present on the surfaces where the gun is directed. The gun head is fitted with a LED signalling its proper operation and informing when the emitters shall be cleaned. The AG-04 gun is supplied with a power cable (5 or 10 meter long) which has to be connected to the 24Vdc. Working distance - 20-1000 mm Operating voltage - 7000 V Power supply - 24Vdc – 0.5 A max. Ambient temperature - 0° C – 70° C Pressure - Max 7 bar
