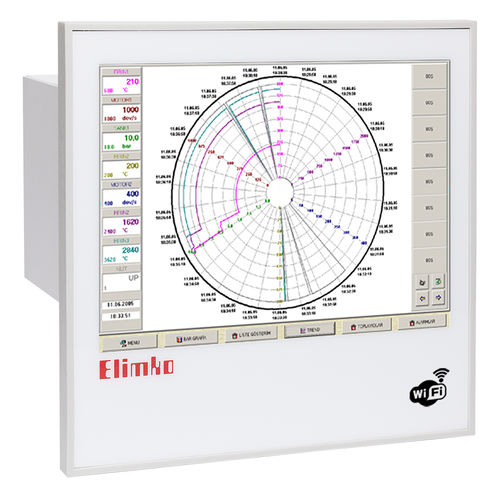

Paperless recorder E-PR-200 series

digitalanalogtemperature

E-PR-200 series paperless recorders and controllers are the touch screen paperless recorders with 54 configurable universal inputs, 18 relay outputs, 144 digital inputs / outputs and all of which are designed in user freindly plugable form. E-PR-200 series paperless recorders are used at different fields of industry such as iron and steel, power plants, chemical and petro chemical refineries, glass, food, cement and others to record and data storage application of temperature, pressure, level, flow, current, voltage and others. E-PR-200 series are multifunctional recorders with RS485 and ethernet communication parts, USB port and 8 GB internal data storage. Accuracy Class 0.5 Screen Type 12.1” TFT display, 1024×768 resolution, 18 bit color, touchscreen Relay Outputs SPST-NO; 250 V AC, 5 A Relay Outputs Numbers Max. 18 relay outputs (depends on configuration) Analog Digital Converter 16 bit (isolated) Analog Input Numbers Max. 54 analog input (depends on configuration)) Analog Output Numbers Max. 12 analog output (depends on configuration)
