Linear actuator

steelaluminumfor sliding gates

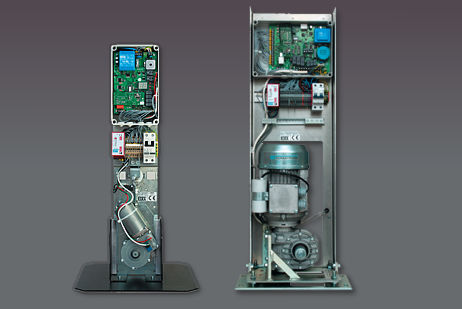

The ORBIT drive assembly fits into any gatepost with internal dimensions of 148 x 148mm minimum. The drive unit incl. motor and controller is mounted onto a console. This complete drive assembly can be installed into the gatepost using only 4 screws. Immediate stop and reversing for a short distance on contact with an obstacle. Plastic rack module 5, in an anodized aluminium- profile, height adjustable. Module 4, made of plastic, height adjustable, available upon request. The toothed wheels made of plastic are height adjustable up to 30mm. The optionally available pre-wired terminal row includes a socket for a 1-channel loop detector. Soft-start and soft-stop, stageless. The 230V drive assemblies fit into any gatepost with internal dimensions of 350x250 x 1,000mm minimum. Fasten the complete drive unit with motor and controller on the foundation. The gatepost is then placed over it and secured with screws. With all 230 slide gate openers an immediate stop via electronic brake and reversing for a short distance takes place when a safety device is activated. ELKA supplies rack module 4, galvanized steel, height adjustable, to be screwed on the gate or module 6, galvanized steel, to be welded on the gate. Drive assemblies 230V are height adjustable up to 30mm. The optionally available pre-wired terminal row includes a socket for a 1-channel loop detector.
