Electric actuator ORBIT 125, ORBIT 210 series

linearaluminumfor sliding gates

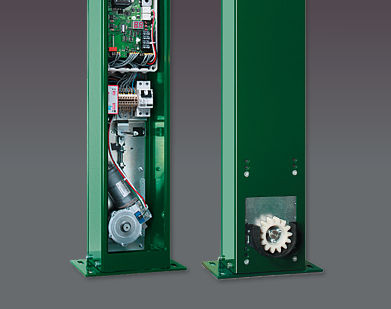

Gatepost made of raw aluminium. Operator unit and controller integrated. Housing made of aluminium -10 years warranty against rust perforation. Soft-start and soft-stop, stageless. The ORBIT is available in the standard heights 1,250mm, 1,500mm, and 2,130mm. All intermediate sizes are available upon request. The housing is available in all RAL-colours upon request. Immediate stop and reversing for a short distance on contact with an obstacle. Plastic rack module 5, in an anodized aluminium-profile, height adjustable. Module 4, made of plastic, height adjustable, available upon request. Gate opener height adjustable up to 60mm. The optionally available terminal row includes a socket for a 1-channel loop detector.
