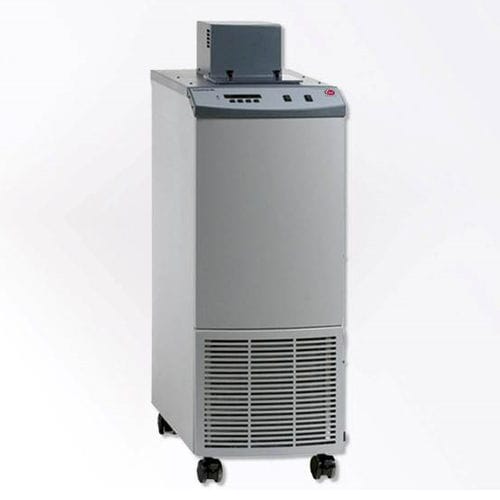

Liquid bath calibrator LiquiCal HL

temperaturefor temperature sensorsprecision

LiquiCal Temperature Calibration Bath LiquiCal HL LiquiCal is a range of high performance temperature calibration baths used for precision calibrations. The baths can be controlled via a PC, allowing for automated calibration and ramp control, or be run as a stand-alone unit. LiquiCal provides an immensely high accuracy along with a large immersion depth, stability, fast temperature changes and quiet runs. Key Features and Benefits Temperature range: +35 to +300 °C Stability: ± 0.007 °C Deep immersion depth Overflow reservoir and drain Fast change in temperature and quiet runs LiquiCal HL Temperature Range: +35 to +300 °C Environmental: +5 to +45°C / 0 – 90% RH, non-condensing Stability at +25 °C: ± 0.007 °C Resolution: 0.01 °C Access Opening: 119 x 172 mm Immersion Depth: 457 mm Tank Capacity: 15.9 L Heating Power: 700 W / 900 W booster Communication: RS232R Power: 115 VAC 60 Hz / 230 VAC 50 Hz External Size: 788 x 356 x 1067 mm Material (wetted parts): AISI 304 Weight: 41 kg
