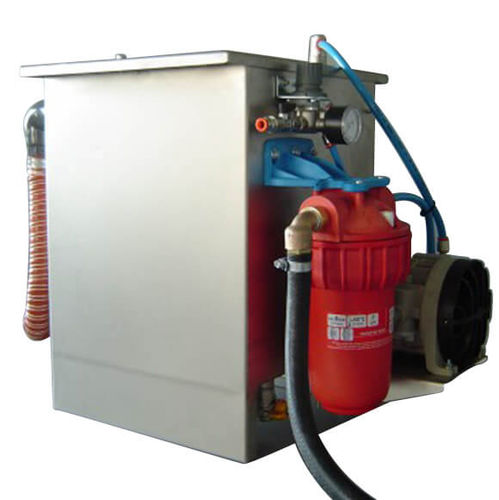

Oil separator watercoalescingcompact
Add to favorites
Compare this product
Characteristics
- Separated substance
- oil, water
- Technology
- coalescing
- Other characteristics
- compact, stainless steel
- Flow
Min.: 100 l/h
(26.417 us gal/h)Max.: 300 l/h
(79.252 us gal/h)
Description
Allows the settling and separation of oil from water.
The compact stainless steel oil separator can either operate while the machine is working or when the washing cycle is off (eg at night).
The pre-filtered liquid is placed in a deoiling tank where a coalescence separator makes it possible to thicken the oil droplets and to separate them from the water. The oil is stratified on the surface and exits the overflow weir. It is then recovered in a collecting container while the disoiled solution gets back into the wash tank to be reused. Feed diaphragm pneumatic pump, adjustable from 100 to 300 l / h.
Technical Data
Power:
compressed air 5 bars
