XYZ stage MDE625 piezomanual3-axis
Add to favorites
Compare this product
Characteristics
- Orientation
- XYZ
- Type
- piezo, manual
- Number of axes
- 3-axis
- Other characteristics
- precision, compact, with controller
- Stroke
2 mm
(0.079 in)- Load
4.5 kg
(9.92 lb)
Description

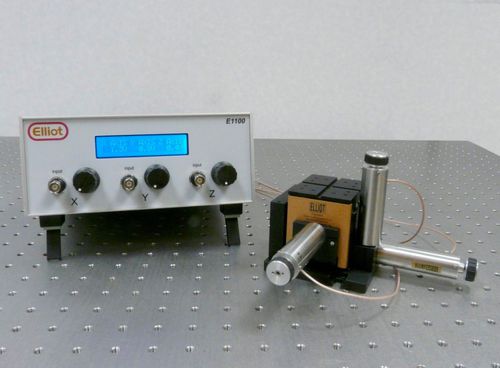

Complete system comprising the E1100 3-channel controller together with the MDE125 Elliot Gold™ Series XYZ flexure stage fitted with piezo actuators providing 100 µm of piezo travel with 50 nm resolution in each of the three axes.
• 100 µm piezo adjustment travel
• 50 nm resolution
• Orthogonal alignment grooves
E1100 Piezo Controller:
• USB interface
• Channels: 3 independent
• Output voltage: 0 to 150 V
• Output current: 50 mA/channel
• Output noise: < 50 µVRMS
• Digital readout on each channel
• Internal/external voltage control
• Ext. input voltage control 0 to 10 V
• Output stability: <0.01% over 16 hours
• Power requirements:
100-230 Vac 50/60 Hz
