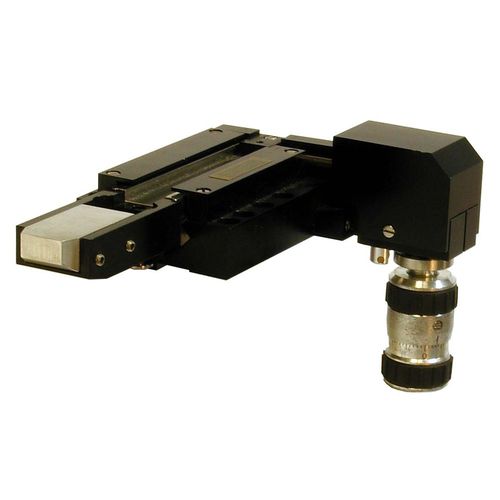

Rotator MDE884RH

• θx fibre array / crystal manipulator • Rotates exactly on x-axis • Maintains 18 mm centre height • Right and Left handed versions available (RH not suitable for combination with MDE185) This θx ribbon cable / crystal manipulator (long reach) has a unique roll mechanism to ensure rotation is exactly about the x-axis, at an 18 mm centre height. Right and left handed versions available. Can also be supplied with θy and θz adjustments. The front block is machined by Elliot Scientific (or customer) to locate silicon V-groove block on the fibre (US: fiber) ribbon. Alternatively, it can be replaced by a device holder as shown in the photo below. The unique mechanical roll design features a decoupling of the linear adjuster travel from the roll motion, which minimises any radial offset during rotation. This ensures that angular movements are exactly about the x-axis and that no radial offset is introduced. The precision of motion results in a very high level of accuracy of the roll angle. NOTE - THE RH version of the MDE884, is not compatible with the MDE185 Picth and Yaw unit, if you are unsure, then please contact the Elliot Scientific sales team for advice on further configuration.
