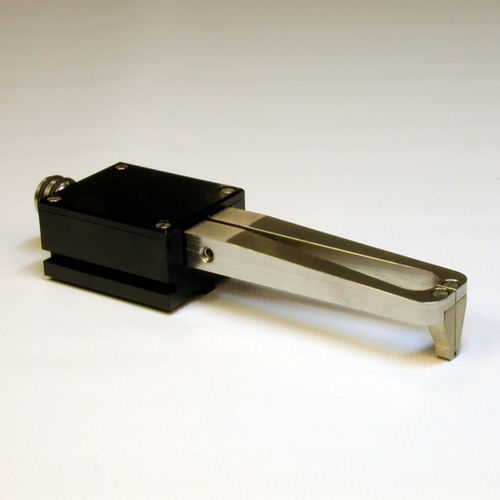

Manual gripper E770-125

parallelcompact

Compact design Repeatable gripping force Rapid loading and unloading feature Minimal gripped length to maximise package accessibility Integrates with Elliot Gold™ series flexure stages Gripping arms contoured to allow a clear view and/or tool access Extended reach for restricted access laser diode alignment tasks Grips a wide range of fibre configurations from clad fibres to ferrules Optional interchangeable custom grips can accommodate all sizes of fibre & ferrules The E770-125 Fibre Gripper is designed to fit on Elliot Gold™ series flexure stages for demanding fibre alignment tasks involving 125 µm fibre (US: fiber). The supplied grips can be swapped out with optional E781 custom grips to accommodate a wide variety of other fibre configurations, or optional E782 grips can be ordered for ferrules in excess of 3 mm diameter. Please contact us if you wish to order any of these accessories. Specifications Grip Size - To fit 125 µm fibre supplied as standard Max Jaw Opening - 10 mm Grip Length - 3.5 mm Optional custom accessories Fibre Grips (E781-nnnn, please specify fibre diameter) Ferrule Grips (E782-nnnn, please specify ferrule diameter)
