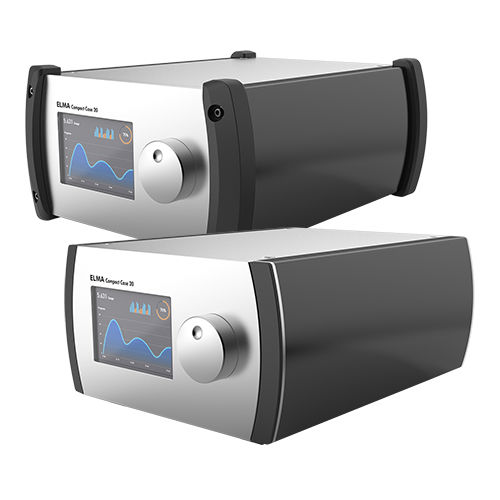

Desktop enclosure Compact-Case-20
for desktop computersmobilesurface mounted

Desktop enclosure - Compact-Case-20 - Elma Electronic AG - for desktop computers / mobile / surface mounted
Desktop enclosure - Compact-Case-20 - Elma Electronic AG - for desktop computers / mobile / surface mounted
Desktop enclosure - Compact-Case-20 - Elma Electronic AG - for desktop computers / mobile / surface mounted - image - 2
Desktop enclosure - Compact-Case-20 - Elma Electronic AG - for desktop computers / mobile / surface mounted - image - 3
Desktop enclosure - Compact-Case-20 - Elma Electronic AG - for desktop computers / mobile / surface mounted - image - 4
Desktop enclosure - Compact-Case-20 - Elma Electronic AG - for desktop computers / mobile / surface mounted - image - 5
Desktop enclosure - Compact-Case-20 - Elma Electronic AG - for desktop computers / mobile / surface mounted - image - 6
Desktop enclosure - Compact-Case-20 - Elma Electronic AG - for desktop computers / mobile / surface mounted - image - 7
Add to favorites
Compare this product
Go to the Elma Electronic AG website for more information

Characteristics

Construction
desktop, for desktop computers, mobile, surface mounted
Configuration
modular
Material
sheet metal, aluminum, aluminum profile
Application
industrial, electronic equipment, for displays, PC 104, indoor, for instrumentation, for PC, for vehicles, operator interface, for electronics, for wireless testing, for trolleys, for measuring devices, for access control, for controllers, transmitter, transport, for digital indicator, test, for general purposes, for power supplies, for sensors, monitoring, rugged, for modems, alarm, for wireless access point, for printed circuit boards, medical, for laboratory
Protection level
impact-resistant, halogen-free, rugged, robust, IP40, EMC, with EMI shielding
Other characteristics
custom, design, lightweight, ergonomic, disassemblable, round, medium-sized, compact
Width

130 mm, 170 mm, 240 mm, 300 mm
(5.1 in, 6.7 in, 9.4 in, 11.8 in)

Height

Max.: 150 mm
(5.9 in)

Min.: 60 mm
(2.4 in)

60 mm, 90 mm, 120 mm, 150 mm
(2.4 in, 3.5 in, 4.7 in, 5.9 in)

Depth

Max.: 300 mm
(11.81 in)

Min.: 150 mm
(5.91 in)

Description

The Compact Case 20 combines flexibility, practicability and intelligent design. Available in four different sizes and three different finishing options. Optionally also with EMC protection and as embedded version. Product Features Attractive design Aluminum sheet metal and extruded profile (sidewalls) Extruded side walls black anodized, panels silver 4 standard dimensions: XS, S, M, L Other depth on request Standard, comfort and rugged version Rugged version with bumper made from elastomer, NBR 80 Shore (RAL9005) EMC level: Basic or Superior Embedded version in 2 sizes and 3 finishing options available
