Spot welding system

PLC-controlledfor steelfor aluminum

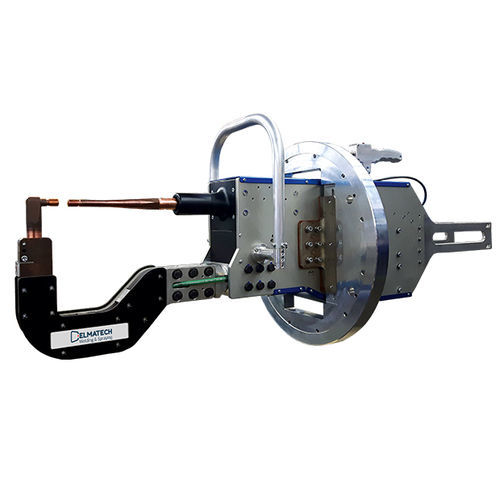

The ELMA CM VISION Alu industrial manual welding gun in combination with the ELMA VMC VISION Alu control cabinet provides an efficient and reliable spot welding system for joining aluminium in the industrial sector. The design of the complete system follows the Keep it small principle and, in addition to an optional external water recooler, consists of only these two components - no additional equipment or mechanical devices such as circulating processing belts or cap cleaning systems are required. In addition, 16 mm standard electrode caps (copper chrome zirconium) can be used. In addition to the "VISION AV Alu" welding programme for aluminium, the system is also supplied with the familiar welding programmes for high-strength and ultra-high-strength steels. Equipment features Industrial spot welding gun ELMA VISION CM Alu Aluminium version with higher transformer and cooling capacity Electrode force approx. 5 kN at 6 bar compressed air network Electronic precision pressure regulator Linear potentiometer for automatic sheet thickness detection With slewing ring and handrim Cable hose package 6 m, pluggable and detachable on both sides 16 mm CopperChromeZirconium electrode caps on standard electrode shafts 600 weld spots can be welded without changing the electrode caps (depending on sheet combination) Control cabinet ELMA VMC VISION Alu, standing version Digital process control Virtual Machine (VM3) for fully automatic spot welding Incl. welding program „VISION AV Alu“ Incl. welding programs for high-strength / ultra-high-strength steels
