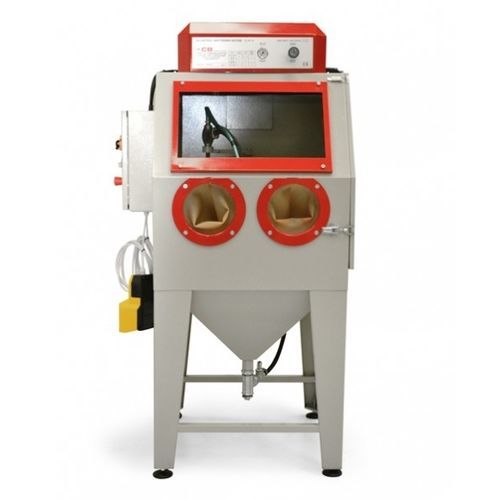

Manual sandblasting machine PAL-1S

injectorsuction

WITH a maximum workpiece size of approx. 30 x 50 x 40 cm, the PAL 1S granulate blasting unit is an ideal solution for small parts cleaning and surface decoration. EQUIPMENT like the large PAL models with suction fan and dust filter bag, but without cyclone separator (therefore no abrasive circuit as with PAL 2N, 3L, 4XL). TECHNICAL FACTS -Max. workpiece size approx. 30 x 50 x 40 cm -With compressed air injector nozzle P/3 -With heavy-duty tungsten carbide blast nozzle P/4 -Safety foot pedal (start-stop) -Exhaust fan -Dust bag -P/3 Injector Ø 3 mm: 600 l/min air requirement P/3 injector Ø 3.5 mm: 800 l/min air requirement P/3 injector Ø 4 mm: 1,200 l/min air requirement -P/4 nozzles O: 6 / 8 / 10 mm SPECIFICATIONS -working pressure1.5 - 8 bar -air consumption injector nozzle P/3 Ø 3 mm600 l/min -air consumption injector nozzle P/3 Ø 3,5 mm800 l/min -air consumption injector nozzle P/3 Ø 4 mm1200 l/min -nozzle P/4 Ø6/8/2010 mm -voltage / frequency400/50 V/Hz -cabin space60x72x70 cm -Dimensions920x960x1820 mm -Weight80 kg
