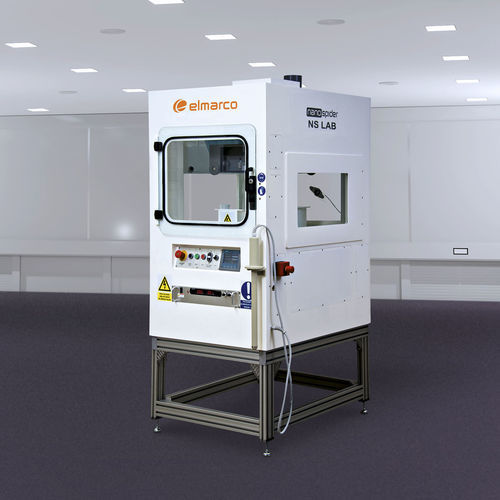

Nanofiber electrospinning machine NS LAB

laboratoryfor non-wovensfor research

Most affordable NS electrospinning equipment Elmarco′s NS LAB is the laboratory electrospinning equipment for efficient nanofiber membrane research and for experimental work. The NS LAB uses the same stationary electrode system as found in industrial Nanospider™ Production Lines, therefore the results from the work on the NS LAB are easily upscalable to the industrial NS electrospinning equipment. Experimental work and product development Basic materials science Elmarco′s electrospinning equipment NS LAB can be configured to work with a wide variety of polymers and to produce a wide range of organic and biodegradable nanofibers. Optional camera for process analysis NS LAB tool can be equipped with an optional industrial camera offering a detailed focus on jets formation on the wire electrode. Batch operating mode (30 – 80 min, depending on process) Integrated unidirectional substrate unwind / rewind Safety door locks and safety shut off switches Number of spinning electrodes: - 1 Spinning electrode width: - 350 mm Substrate speed - 0 - 5000 mm/min Spinning voltage: - 0 - 80 kV
