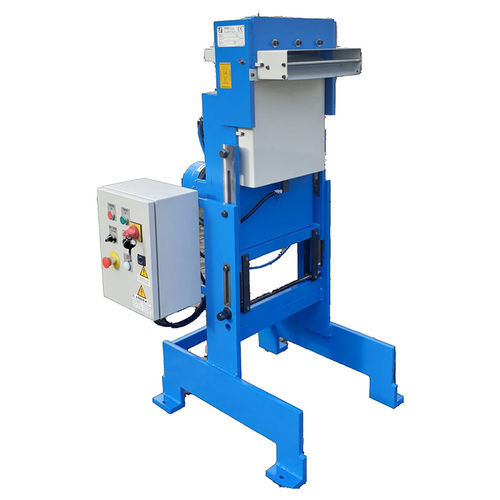

Blade cutting system UT 30

for metalsheet metalfor industrial applications

• Simplicity: compact machinery to set up near the press without any need for coupling or tuning • Convenience: the body of the cutting unit is equipped with a base with manual lift+/- 50 mm to align the cutting opening to the tape passage height • Speed: possibility of cutting multiple tapes simultaneously • Long lasting: little maintenance, components subject to wear last over time • Reliability: Solid and long lasting machinery, robust structure in electro-welded steel CHARACTERISTICS OF THE CUTTING UNIT MODEL UT 30: • tape width 300 mm • Cutting sections: Cutting section 300 x 2 / 200 x 2.5 / 150 x 3 / 100 x 4 • Cuts per minute 35 • Four-edged blade in the best, prestigious K110 steel or in K390 steel also suitable for cutting sheet metal in silicon and stainless steel • Adjustable and resharpening blades, therefore long lasting • Possibility of cutting synchronism with other operating machines (presses, feeders, etc.) using a mechanical connection device with electro-pneumatic control • Cutting possible using programmer to allow particular cutting sequences • Gearmotor with drive units in oil bath • Compact dimensions • With safety casing • Electrical system on machine with control using keypad and emergency button
