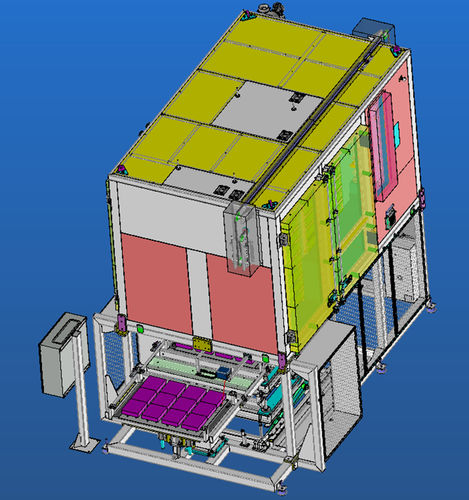

Stacked tray oven

curingpolymerizationhardening

- A welded tubular steel structure - A 2-position rotary table, driven by a hollow-shaft geared motor. - An electric lifting table for loading and unloading trays in the tower. - An upper tray transfer trolley. - A lower transfer carriage for loading the rotary table. - A rear maintenance drawer, allowing trays or tooling to be moved in and out. - 30 stackable trays. - A welded tubular section structure. - Thermal insulation using rock wool panels (M0 non-flammable), thickness 100 mm. - An internal laboratory in aluminised sheet metal, welded watertight. Adjustable air diffusion vanes for transverse distribution. - External cladding in galvanised sheet steel, 4 pivoting inspection doors. - A centrifugal fan to circulate the hot air. - A set of shielded resistors, rack-mounted for easy maintenance. - A centrifugal cooling fan for air recirculation through an exchange coil. - Dampers to regulate the flow of fresh air and exhaust air from the furnace. - Two K control thermocouples (heating and cooling). - Two safety K thermocouples with approved transmitter. - An electrical cabinet, comprising : o PID oven temperature controller o Siemens S7 PLC, Ethernet cards o Relays, protections, power supplies. o Command and control switches and indicators. o Drives and motors o Cabinet fans o Steel cable trays
