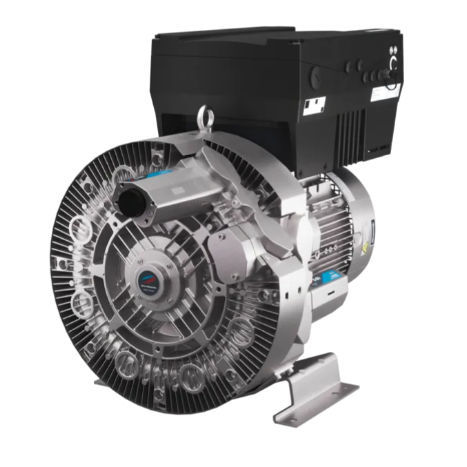

Air blower G-BH7
side-channelsingle-stageATEX

air blower
air blower
air blower
air blower
Add to favorites
Compare this product

Characteristics

Type
air
Technology
side-channel
Number of stages
single-stage
Other characteristics
ATEX
Flow rate

Max.: 230 m³/h (8,122 ft³/h)

Min.: 50 m³/h (1,766 ft³/h)

Operating pressure

Max.: 100,000 Pa (14.504 psi)

Min.: 0 Pa (0 psi)

Nominal power

0.55 kW, 0.63 kW (0.75 hp)

Description

Advantages at a glance Up to 20,000 hours without maintenance down time. Reliable under the harshest of conditions. Outstandingly low noise levels. The use of a frequency converter mounted directly on the motor or installed separately in a switchgear cabinet can considerably increase compressor capacity without an increase in size. Speeds of up to 6,000 rpm (100 Hz) can be achieved with standard machines. UL/CSA approval for worldwide use. 50/60 Hz voltage range motors. IE3 / Nema Premium motors on request. Available with ATEX certification. Technical Features Volume flow 50 to 230 m³/hr Volume flow 29.4 to 135.3 cfm Differential pressure up to 1,000 mbar
