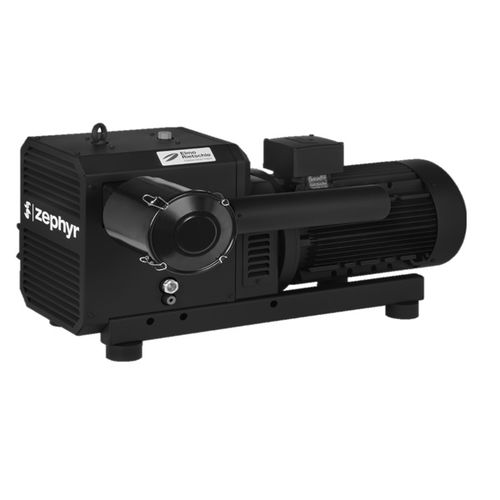

Air compressor C-DLR series

electrically-poweredstationarydry

The C-DLR 301 claw compressor represents the pinnacle of precision engineering, merging unparalleled efficiency with state-of-the-art technology. Outfitted with an AC motor and an integrated frequency converter, this advanced compressor offers variable speed control for tailored performance. The commitment to innovation extends to its maintenance-friendly design, featuring integrated air cooling that negates the need for external cooling systems. The C-DLR 100,150 compressors embody precision engineering with their double-shaft rotary piston design. These compressors operate with claws that roll off against each other in a contact-free and dry manner, ensuring cleanliness and efficiency. The C-DLR 401,501 claw compressors stand at the forefront of technology, offering high-efficiency, dry, and contact-free compression. These units are equipped with IE3 motors and are capable of handling capacities ranging from 270 to 500 m³/h at 50 Hz Designed for continuous operation, they can achieve an overpressure of up to 2.2 bar. The compressors' low-maintenance requirements and integrated air cooling system, which foregoes the need for an additional cooling medium, make them an optimal choice for various industrial applications. Adhering to DIN EN 60034 standards, the flange-mounted motors boast IP 55 protection and insulation class F, ensuring durability and safety.
