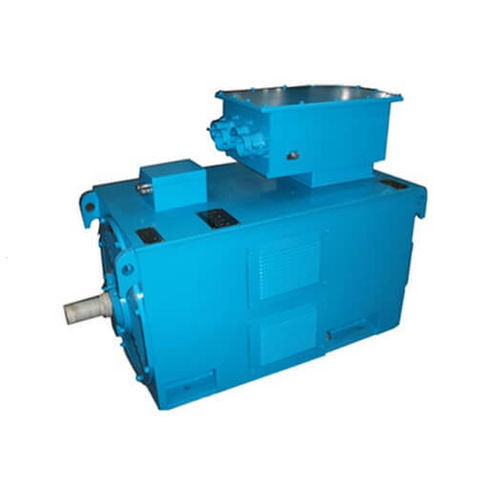

High-voltage motor Y series

asynchronous> 1000 VIP23

ELOM Squirrel Cage motors which use steel box-type structure are with squirrel cage rotor and bar winding.The motors have the advantage of light weight, good rigidity, low temperature rise and convenient installation and maintenance. They are widely used Frame Including: 315,355,400,450,500,560,630,710,800,900,1120 Frequency: 50Hz 60Hz Mounting type: IMB3, IMB35, IMV1,IM7311 Color: blue or as requirement Insulation class: F or H Temperature rise: B or F Accessory: PT100, PTC, PTO, Space heater, SPM vibration sensors Y squirrel cage high voltage motors are designed on base standards of IEC 60034 and NEMA MG1 electrical part, having performance characteristics in accordance with requirements of load torque inertia and efficiency. Y motors have a welded steel frame. They are rated from 160 to 16000 kW, and are available at 50 and 60 Hz in shaft heights from 315 to 1120 mm. The complete range is designed for fixed speed drive applications with DOL power supply, and is available for VFD cases fed by frequency converters The motors are available for horizontal or vertical mounting. Vertical mounting is specifically designed for vertical, condensate and circulating water pumps. The motor has a shaft mounted inside fan (if any) using the surrounding air for cooling. The motor is so designed that the ingress of rain, snow and airborne particles into the electrical parts is reduced. The motor is protected such that splashing water from any direction will have no harmful effect. The standard filter material is galvanized steel.
