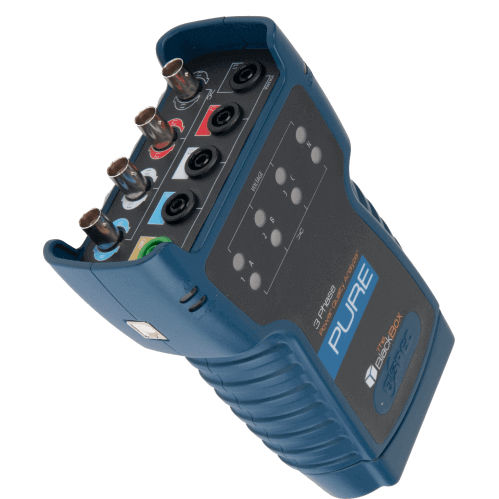

Power quality analyzer Pure BlackBox

for electrical networkshandheld

The Pure BlackBox, an advanced handheld power quality analyzer embedded with PQZIP Technology, is an easy to use plug and play device that continuously records all power quality parameters without thresholds settings or recording configuration. The device is available in 2 versions: Single Phase, 3-Phase. Features - Continuous waveform recording - Class A devices IEC61000-4-30 - Configuration FREE Device - SD card slot hot swap - Fast USB connectivity to PC - Plug & Play Extended Harmonics Recording The Pure BlackBox records and stores 128 harmonics components at 50Hz resolution and 512 inter-harmonics components at 5Hz resolution for both voltage and current. Comprehensive Event Mechanism The PureBB is designed to detect any event occurring on your system. The PureBB analyzer is capable of recording waveform signals continuously. The event configuration doesn’t trigger the recording but rather stores summary logs including start and end time, duration, severity and magnitude of the event. All events can be displayed in a tabular or scatter charts as CBEME/ITIC.
