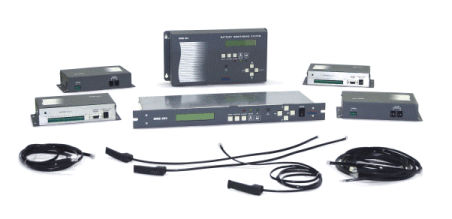

Programmable battery monitor HB

complex modular supervisory system of battery status processor control unit possibility to monitor max. 4 independent battery sets max. number of monitored cells is 256 in 4 battery sets LCD display with characters fully programmable measuring process galvanic isolation of measurement communication via RS232/485/422 - simple connection of measuring modules also for longer distances possibility to build into 19” cabinet eventually to place it on the wall Monitoring system HB operation is suitable for applications where is required monitoring of battery operation. The HB monitoring system monitor and signalise deep battery discharge in real time, eventually discharging of particular cells of battery sets, measured voltage on particular cells of battery sets, over discharging or overcharging battery current, battery temperature deviation from specified values and etc. Overrun of every of mentioned parameters could lead to battery set destruction, so it is needed to have immediate information about battery status. The system si design into 19" rack high 2U and can be built into 19" cabinet or can be fixed on the wall in vertical position. Method of fixation has to be specified ba client in advance. Battery monitoring system is fully autonomy working or can be directly battery-powered. So it is not necessary to provide power supply from back-up distribution mains, what enable to situate battery-monitoring system directly into accumulators` installation or storage room.
