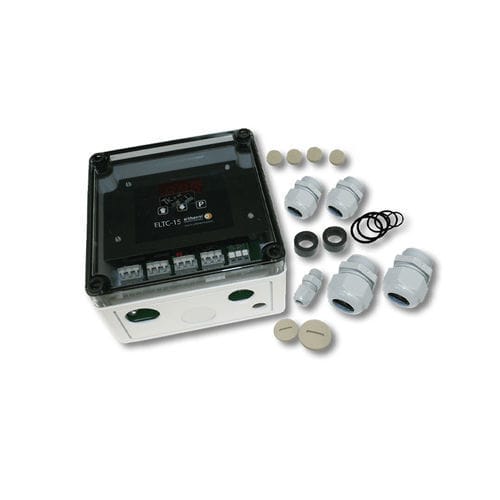

Electronic temperature controller ELTC-15 NA

with LED displayhigh-temperatureIP65

The ELTC-15 is an electronic temperature controller with digital display and rampmode functionality. It supports a 2- or 3-wire Pt100 input or thermocouple type K. After having evaluated the actual and preset values, the appropriate output relays are switched, depending on the configuration. Cable glands and terminals are provided for the power connection. The unit is supplied in a weather proof plastic enclosure, with a transparent cover. Technical Benefits - Signaling contact (configurable to operate either as alarm or release contact, potential-free) - For connection of up to two Self-Regulating Trace Heaters - Rampmode functionality Technical Data Enclosure dimension 5.12 x 5.12 x 2.95 in / 130 x 130 x 75 mm (wxhxd) Supply voltage 90 - 260 V AC, 50/60 Hz, +/- 10 % Temperature sensor Pt100 2-wire, 3-wire, thermocouple type K Display LED, red Switching capacity max. 20 A with hybridrelay (Relay 1)
