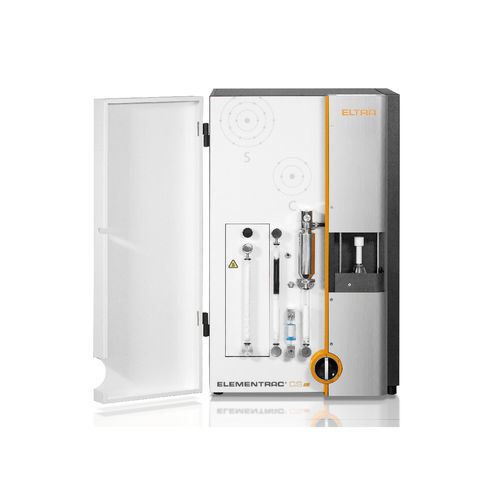

Carbon dioxide analyzer ELEMENTRAC CS-i

sulfur dioxidesulfurcarbon

The elemental analyzer ELEMENTRAC CS-i measures the carbon and sulfur concentration in predominantly inorganic samples through combustion in an induction furnace and the subsequent analysis of the gaseous combustion products carbon dioxide and sulfur dioxide. The high temperature of more than 2000 °C ensures complete decomposition of the sample and thus reliable and accurate elemental analysis over a wide concentration range. The ELEMENTRAC CS-i meets and exceeds the requirements of all common standards for carbon and sulfur measurement, such as ASTM E1019, DIN EN ISO 153. Carbon / Sulfur Analyzer ELEMENTRAC CS-I Control of induction performance provides precise analysis of low-melting metals Heated dust trap allows for improved sulfur detection Platinum-based catalyst reactor ensures accurate carbon detection Carrier gas flow optimized for dusty samples Software-based leakage test Optional vacuum system, also available with dust filter class H for potentially harmful samples Single and multipoint calibration Robust design allows usage in production control and laboratory Low maintenance Step 1: Logging the sample into the ELEMENTS software The sample ID is logged into the software and the weight is automatically transferred (see step 2).
