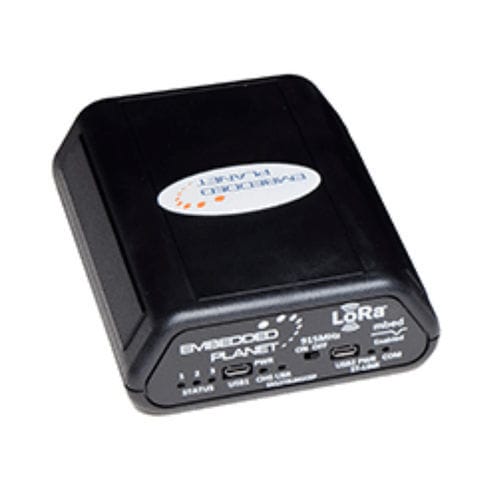

Temperature sensor module EPM2M-NORAM

The EPM2M-NORAM Sensor Module is a wireless sensor for Semtech LoRa based wireless sensor networks. Download the Datasheet The EPM2M-NORAM includes sensors for GPS, pressure, accelerometer, humidity and temperature. By leveraging LoRa, Embedded Planet has created a complete wireless sensor solution which provides low power consumption and can be use in harsh and challenging RF environments. The EPM2M-LR-NORAM uses the ARM Cortex M3 processor and LoRA module to minimize space and save power. The EPM2MSM- NORAM sensors connect seamlessly to the EPM2M-LORA Gateway to allow LoRaWAN access for a secure connection. Features Temperature: 12 / 14 bit resolution; Measurement time at 14 bit is 50 ms max Humidity: 8 / 12 bit resolution; measurement time at 12 bit is 16 ms max Pressure: Less than 1 foot / 0.3 m resolution Pressure range: 20 – 110 kPa Compensated, direct reading (software is not needed): 20-bit pressure measurement (Pascals) 20-bit altitude measurement (meters) Accelerometer: Complete 6-axis, e-compass hardware solution ±2 g/±4 g/±8 g dynamically selectable acceleration full-scale range ±1200 µT magnetic sensor full-scale range 14-bit ADC resolution for acceleration measurements 16-bit ADC resolution for magnetic measurements Light: Maximum Lux Sensitivity – Fluorescent light – 0.045 Lux/LSB Saturation Ambient Lux Level – Sunlight – 188,000 Lux Power: Battery options
