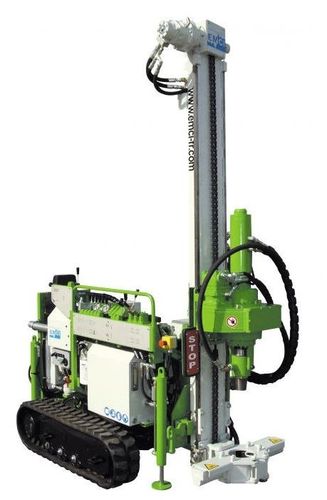

Multifunction drilling rig 30 hp, 1500 kg | Emci 300crawlerrotaryhydraulic
Add to favorites
Compare this product
Characteristics
- Applications
- multifunction
- Mobility
- crawler
- Drilling unit
- rotary
- Other characteristics
- hydraulic
Description
UNDERCARRIAGE
Variable width rubber track crawler with remote con
Minimum width : 750mm
Option : steel track
POWER PACK
Diesel Deutz engine 30HP air cooled
Fuel tank : 35 liters
Hydraulic tank 60 litres
FRAME
Welded steel frame
4 hydrajlic stabilizers
Option : pipe rack
ROTARY HEAD
Rotary injection
Hydrauli c drifter
Air water swiveJ
Transmission thru heavy duty gear
Option '.Various rotary head configuration
MAST
Stroke 1.5m
Translation thru hyd. Motor, sprocket and chain
Pull-up 2000kg / Pull-down 1000kg
Mast locking device in drilling position
Rotary head manual side way travel
