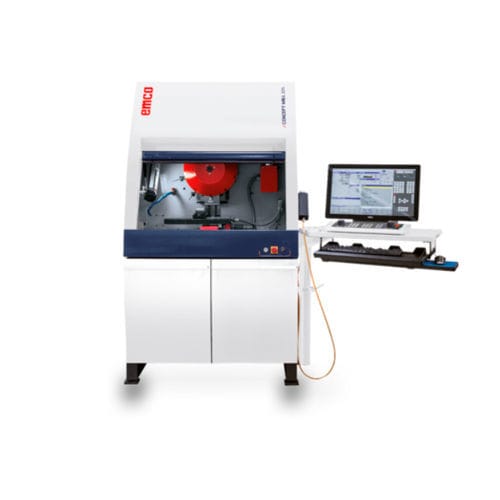

Tabletop CNC milling machine CONCEPT MILL 105

3-axisvertical10 tools

Infinitely adjustable main drive Robotic interface for integration into FFS/CIM systems High-resolution axis motors Safety technology according to the latest lathes standard NC dividing unit as an optional fourth axis Made in the Heart of Europe Highlights Stable gray cast iron construction Infinitely variable main and feed drives Spindle bearing lubricated for life Fully covered work area Backlash-free storage of the work spindle in accurate angular ball bearings lubricated for life Automatically reference points Clockwise/counterclockwise spindle rotation Guide ways with automatic central oil lubrication CNC 3D continuous path control Options/Accessories Engraving spindle attachment Because of the high transfer of speed engravings can be made. NC dividing unit For the Concept Mill 105 a dividing unit representing the 4th axis is available with 3-jaw cuck, tail stock and rolling grains. Machine base The machine base is equipped with an extendable load and provides additional space for a PC tower. Electronic hand wheel For moving the machine’s axes manually. Automation Integration into FMS and CIM systems The robotics interface can not only control the periphal equipment (such as automatic door, vice, etc.) but also connect the machine to other machines or devices (e.g. loading and unloading robots). The DNC interface allows programs to be started from the master computer. Automatic door Thanks to the pneumatic unit the machine door opens and closes automatically or by pressing the button. The monitoring of the door position is done via end switch.
