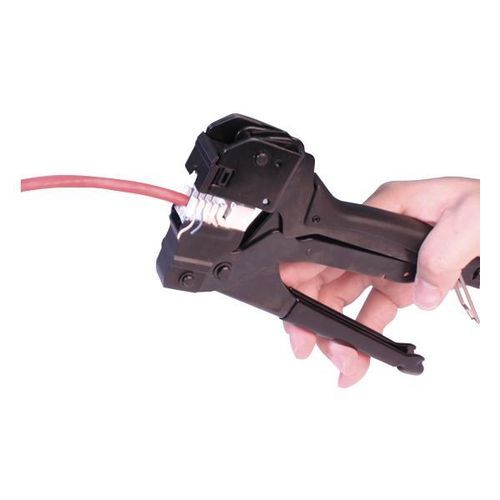

Manual crimping tool

for RJ45 plugs

Product overview
EmCom offers a range of quick-connect RJ45 jack termination tools designed to speed up on-site cable termination for structured cabling installations.

Key features

• 4-pair termination tool: seats and terminates all 8 wires at once to reduce installation time and ensure correct seating.
• 4-in-1 dual-level parallel plier: combines cable length measuring, cable stripping, keystone jack/field term plug seating and clamping, and termination in a single tool.
• Plier design: stable platform to hold jacks/plugs and parallel motion for consistent termination force and repeatable results.
• Variants available for 90° and 180° keystone jacks; compatible with EmCom tool-free keystone jacks and specified jack references.

Ordering information
Part # / Description
EHT060 — 4-in-1 Parallel Plier for tool-free jack and field term plug
EHT050 — RJ45 quick termination tool for 180° keystone jack, suitable jack(s): 0A68IP0A0
EHT040 — RJ45 quick termination tool for 180° keystone jack, suitable jack(s): 0A68RP000
EHT031 — RJ45 quick termination tool for 3K68 series
EHT030 — RJ45 quick termination tool for 90° keystone jack, suitable jack(s): 1K58KP0e0 and 1K68KP000
EHT010 — RJ45 quick tool for EmCom Tool-free keystone jack

Technical specifications

• Product type: quick-connect RJ45 jack termination tools and pliers (tool family)
• Functions: seating and terminating 8 wires at once; cable length measurement; cable stripping; keystone jack and field plug clamping
• Design features: parallel plier action; stable seating platform for jacks/plugs
• Available part numbers: EHT060, EHT050, EHT040, EHT031, EHT030, EHT010
