Windows 11 Pro tablet M10L

Windows 11 IoT EnterpriseWindows 1110.1"

Overview

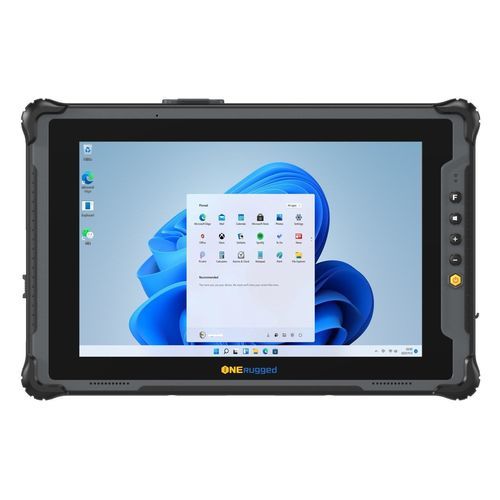

ONERugged M10L is a 10.1" rugged AI tablet designed for demanding field operations. Featuring the Intel® Core™ Ultra 5 226V processor with up to 40 TOPS AI acceleration (platform-level figures up to 97 TOPS), the M10L provides on-device AI capability in a compact, serviceable chassis suitable for industrial and field workflows.

Highlights

• Operating System: Windows 11 Pro (options: Windows 11 Home / IOT)
• Processor: Intel® Core™ Ultra 5 226V (8 MB cache, up to 4.5 GHz, 8 cores)
• Display: 10.1" FHD (1200 × 1920), 700 nits (optional 1000 nits), 10-point glove touch
• Memory & Storage: 16 GB LPDDR5x (option 32 GB), 256 GB PCIe SSD (option 512 GB / 1 TB)
• Ruggedness: IP65, MIL-STD-810H, drop tested 4 ft (26 drops)
• Battery: Hot-swappable 5000 mAh external battery + 860 mAh internal backup; optional 9800 mAh extended pack
• Connectivity: Intel® Wi‑Fi 6E, Bluetooth® 5.4, integrated 4G LTE (optional 5G), GNSS

Key Features

• On-device AI: Intel Core Ultra acceleration and Intel Arc GPU to support inference and graphics workloads at the edge.
• Outdoor usability: High-brightness FHD panel with glove-capable multi-touch for outdoor and vehicular use.
• Comprehensive I/O: Thunderbolt 4 (Type-C), USB 3.2 Type-A, mini HDMI (HDMI 2.1a mini), Micro SD, SIM, 3.5 mm audio, DC-in and 12-pin pogo for charging/USB.
• Modular expansion: 5-in-1 expansion module with default Gigabit Ethernet and optional RS232, USB 2.0, 1D/2D scanner or RJ45+USB configuration.
• Security & sensors: TPM 2.0, optional fingerprint and HF-RFID (NFC) readers; GNSS and environmental sensors for field deployments.
• Durability: ESD protection (±8 kV contact / ±15 kV air), operating -20°C to 60°C, wide storage range and high humidity tolerance.

Technical Specifications

• Model: M10L
• Dimensions: 292.1 × 192.1 × 23.8 mm
• Weight: 1290 g
• Display: 10.1" FHD, 1200 × 1920 resolution
• Brightness: 700 nits (optional 1000 nits)
• Touch: 10-point capacitive, glove support
• OS: Windows 11 Pro (optional Windows 11 Home / IOT)
• CPU: Intel® Core™ Ultra 5 226V (up to 4.5 GHz, 8 cores)
• GPU: Intel® Arc™ 130V/140V
• Memory: 16 GB LPDDR5x onboard (option 32 GB)
• Storage: 256 GB PCIe SSD (options 512 GB / 1 TB)
• Battery: Li-ion 7.4 V 5000 mAh (~7.6 h), optional 9800 mAh; built-in 860 mAh backup
• Audio & Cameras: 1 W speaker, integrated mic; front 5 MP, rear 13 MP with flashlight
• I/O: Micro SD ×1, SIM ×1, USB 3.2 Type-A ×1, Thunderbolt 4 (Type-C) ×1, 3.5 mm ×1, HDMI 2.1a mini ×1, DC-in 5.5 mm ×1, 12-pin pogo ×1
• 5-in-1 Module: Default Gigabit Ethernet (RJ45); optional RS232 / USB 2.0 / 1D/2D scanner / RJ45+USB
• Wireless: Intel® Wi‑Fi 6E, Bluetooth® 5.4
• WAN: 4G LTE standard (optional 5G)
• GNSS & Security: GPS, GLONASS; TPM 2.0; fingerprint & HF-RFID optional
• Durability: IP65; MIL-STD-810H; drop resistance 4 ft (26 drops)
• ESD & Certs: ESD ±8 kV contact / ±15 kV air; CE, FCC
• Operating Range: -20°C to 60°C; Storage -30°C to 70°C; Humidity 95% non-condensing

Accessories & Options

• Standard: AC adapter, AC cable, hand strap, carry handle
• Optional: Docking charger, vehicle mount, removable/extended battery, quad charging dock, barcode modules, fingerprint/HF-RFID readers
