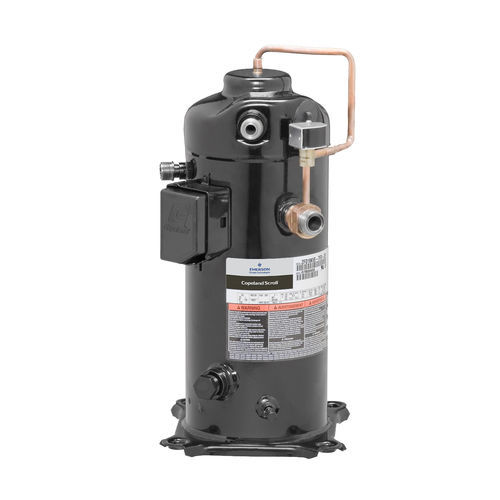

Hermetic refrigeration compressor ZFD series
scrollR22R404A

hermetic refrigeration compressor
hermetic refrigeration compressor
Add to favorites
Compare this product


Characteristics

Configuration
hermetic
Technology
scroll
Refrigerant
R404A, R22, R449a
Applications
for industrial refrigeration
Refrigeration capacity

Max.: 15 W

Min.: 3 W

Suction line diameter

1.25 in

Exhaust line diameter

1 in, 1.25 in

Power

Max.: 13 ch
(13 hp)

Min.: 4 ch
(4 hp)

Imax

Max.: 20.4 A

Min.: 6.7 A

Oil charge

Max.: 3.4 l
(0.9 gal)

Min.: 1.2 l
(0.32 gal)

Sound level

65 dB, 67 dB, 70 dB, 72 dB, 73 dB

Length

241 mm, 243 mm, 245 mm, 246 mm, 310 mm
(9 in, 10 in, 10 in, 10 in, 12 in)

Width

243 mm, 250 mm, 280 mm, 299 mm, 363 mm
(10 in, 10 in, 11 in, 12 in, 14 in)

Height

432 mm, 463 mm, 481 mm, 534 mm, 552 mm
(17 in, 18 in, 19 in, 21 in, 22 in)

Weight

Max.: 66 kg
(146 lb)

Min.: 30 kg
(66 lb)

Description

Copeland ZBD and ZFD scroll digital compressors provide stepless continuous capacity modulation in medium and low temperature refrigeration applications. Digital scroll technology - based on the unique Copeland compliant scroll design - is a simple modulation solution that can easily and quickly be implemented into any existing system design as no other components are required. Digital scroll technology provides continuous, stepless modulation from 10% to 100% with no operating envelope restriction. As result, system pressures and temperatures are tightly controlled. These compressors provide optimum performance for refrigeration units, refrigeration packs, process and agricultural units. Nominal Voltages400, 460 V Frequency50, 60 Hz ApplicationsMedium Temperature Performances given at conditionsEN12900, MT application ApplicationsMedium Temperature Performances given at conditionsEN12900, MT application Features -Continuous modulation from 10% to 100% ensuring a perfect match of capacity and power to the desired load -An economical and reliable alternative to variable speed drive -Precise suction pressure control with associated energy savings -Food quality is maintained by stable evaporating temperatures in the refrigerated areas -Longer lasting refrigeration equipment due to fewer compressor cycling -Quick and easy integration into refrigeration equipment, similar to any other scroll compressor -Availability of Emerson’s series of controllers that operate the digital scroll compressor -Possibility of digital and liquid injection control via optional Copeland compressor electronics
