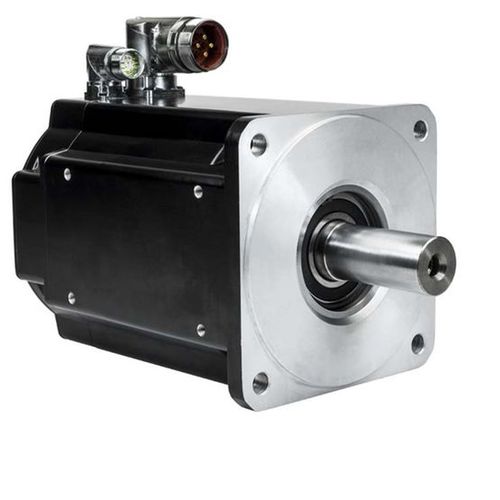

AC servo motor IC830M72L-KKC2AB00synchronous240 V480 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- AC
- Type
- synchronous
- Voltage
- 240 V, 480 V
- Configuration
- with brake
- Applications
- industrial, for machine tools, for the textile industry
- Other characteristics
- high-speed, motion control, EtherCAT, NEMA
- Power
Max.: 8.58 kW
(11.666 hp)Min.: 0.32 kW
(0.435 hp)- Torque
Max.: 52.2 Nm
(38.5007 ft.lb)Min.: 0.48 Nm
(0.354 ft.lb)- Rotational speed
Max.: 8,000 rpm
(50,265.48 rad.min-1)Min.: 1,800 rpm
(11,309.73 rad.min-1)
Description
Perfect for a wide variety of servo motion needs including industrial robots, machine tools, textile/packing machinery and similarly dynamic motion control applications
Features
Built on open EtherCAT communications
Multiple options to best fit your application
Functional replacements for FANUC motors
Low inertia for quick positioning
Expandable design with up to 50 coordinated axes of control in a single system: 40 physical and 10 virtual
Integrated with PAC Machine Edition Software for consistent programming
Optional single cable connection for simple maintenance and installation
Exceptionally low cogging and harmonic distortion for consistently smooth performance
Specifications
Functional Replacement for following FANUC Motors
Beta 22 / 2000HVis
Frame Size
7
