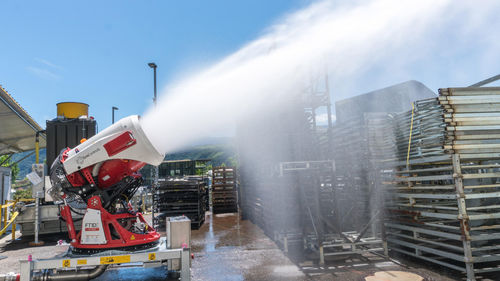

The FT10e firefighting turbine represents a new and innovative generation of stationary fire protection systems. It's unique characteristic: the firefighting turbine combines the advantages of an extinguishing monitor with the cooling effect of water mist.
The water mist turbine has a 360° operating range and applies water mist accurately even at long distances. Water mist achieves a higher cooling effect when extinguishing fires while requiring less water. The turbine has two internally separated water circuits that allow different spray patterns:
a centrally located monitor generates a full jet or umbrella jet with 2,300 l/min
a nozzle ring on the outside of the turbine produces a fine water mist with up to 400 l/min.
Since the turbine uses water mist, it offers enormous advantages in the event of a fire: on the one hand, the structure can be better cooled by the water mist, and on the other hand, the lower quantity of extinguishing water also leads to reduced follow-up costs. The FT10e firefighting turbine can be controlled fully automatically by any fire detection system. It also works with water, foam or a water-foam mixture.
All Advantages of the FT10e at a Glance
Fully automatic or manual control
No extraordinary pressures are required (lower purchase and installation costs)
360° operating range
One turbine can cover several fire areas
Easy integration into existing systems
Reduced quantity of extinguishing water, reduced secondary damage
Low maintenance costs
The FT10e significantly increases Protection because:
Water mist is exceptionally effective in extinguishing fires
The structure is more effectively cooled with water mist
