Polyamide knurled screw 16-62 seriesplasticthermoplasticround-end ball
Add to favorites
Compare this product
Characteristics
- Materials
- plastic, polyamide, thermoplastic
- Other characteristics
- shoulder, chemical-resistant, corrosion-resistant, threaded, round-end ball
- Diameter
Min.: 4.5 mm
(0.177 in)Max.: 40 mm
(1.575 in)- Length
Min.: 5 mm
(0.2 in)Max.: 35 mm
(1.38 in)
Description
Presentation

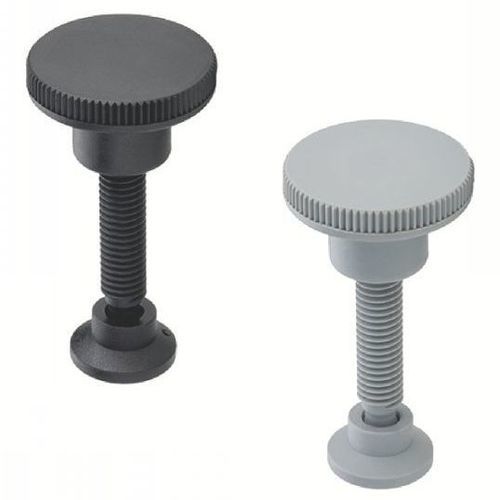

Knurled shoulder screw (model 16-62) in technopolymer, fitted with a ball-threaded stud, available with or without pad. Series intended for manually tightened screws and nuts (Series 16).
Material
Use
Order example
ORDER EXAMPLE: Reference-l1-d5: 16-625-6-25-15
Available references
Documents
Data sheets / 3D files and drawings available (dimensional drawing provided on the product sheet).
Technical characteristics / specifications
Knurled shoulder screw (model 16-62) in technopolymer, fitted with a ball-threaded stud, available with or without pad. Series intended for manually tightened screws and nuts (Series 16).
Material
- Body: technopolymer based on polyamide (PA), glass-fibre reinforced, colour black (RAL 9005) or grey (RAL 7040).
- Pad: acetal-based technopolymer (POM), black or grey, matte finish, supplied unassembled.
Use
- Operating temperature: 0 °C to +60 °C.
- Dimensions identical to steel knurled shoulder screws (DIN 464) while being approximately 5× lighter.
- Good mechanical strength; resistant to corrosion and many chemical agents.
- Suitable for outdoor use.
Order example
ORDER EXAMPLE: Reference-l1-d5: 16-625-6-25-15
Available references
- 16-625-6-25-15
- 16-625-6-35-15
- 16-625-6-25-18
- 16-625-6-35-18
- 16-625-6-25-21
- 16-625-6-35-21
- 16-625-8-30-18
- 16-625-8-35-18
- 16-625-8-30-21
- 16-625-8-35-21
- 16-625-8-30-25
- 16-625-8-35-25
- 16-625-8-30-32
- 16-625-8-35-32
- 16-625-8-30-40
- 16-625-8-35-40
- 16-626-6-25-15
- 16-626-6-35-15
- 16-626-6-25-18
- 16-626-6-35-18
- 16-626-6-25-21
- 16-626-6-35-21
- 16-626-8-30-18
- 16-626-8-35-18
- 16-626-8-30-21
- 16-626-8-35-21
- 16-626-8-30-25
- 16-626-8-35-25
- 16-626-8-30-32
- 16-626-8-35-32
- 16-626-8-30-40
- 16-626-8-35-40
Documents
Data sheets / 3D files and drawings available (dimensional drawing provided on the product sheet).
Technical characteristics / specifications
- Materials: technopolymer (PA reinforced with fibres) for the body; pad in POM (acetal).
- Colours: Black (RAL 9005) or Grey (RAL 7040).
- Operating temperature: 0 °C to +60 °C.
- Dimensional compatibility: equivalent to knurled shoulder screws DIN 464.
- Properties: very light (≈5× lighter than steel), good mechanical resistance, resistant to corrosion and chemical agents, suitable for outdoor use.
- Thread options: M6, M8.
- Examples of available dimensions: l1 = 25 / 30 / 35 mm; l2 = 5 / 6 mm; l3 = 15 / 18 mm; d2 = 24 / 30 mm; d3 = 12 / 16 mm; d4 = 4.5 / 6.1 mm; d5 = 15 / 18 / 21 / 25 / 32 / 40 mm.
- Pad supplied unassembled.
- Price: NC (not communicated) by default for the listed references.
