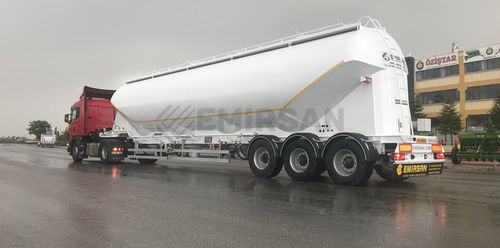

Silo semi-trailer W

3-axletowedcement

W type cement tanker trailer differs with discharge and filling direction compared to other trailers. It is also called Millenium and Euro type. It is designed for the transport of powder and fine form products. CEMENT TRAILER FEATURES Unloading Compressors: Betonsan brand Electrical or Diesel Engine with 2 or 3 head option Axles: BPW, SAF or Turkish brand axles with 9-12-14-16 tons capacity, drum or disc option Brakes: Wabco, Knorr EBS or Dual air brake system Suspension: Air suspension, mechanical leaf spring suspension or bogie type suspension Tires and Rims: Single or Double Tire, 385/60 R22,5 – 315/80 R22,5 – 12 R22,5 – 13 R22,5 Electrical System: Saba, Aspock or Hella brand electrical system with 7 or 15 pin option King Pin: 2” or 3,5” king pin JOST or equivalant Turkish made Landing Gear: 25-35 Tons JOST or equivalant Turkish made Painting: DYO or equivilant brand with primer coating before sand blasted Accessories: Tool box, fire box, spare tire carrier, water tank 22-60 CBM W TYPE CEMENT TANKER TRAILER TECHNICAL SPECIFICATIONS Tank is “V” shape and discharging is from bottom. Tank is build hard ST steel with thickness of 4-5 mm and end dish thickness 4-5 mm. Working pressure 2 bar and test pressure 3 bar. 2 unit air pressure manometer. 4 “ discharging system and 6 mt special alloy discharge hose and 1 unit regulated to 2.5 bar safety valve nad Upper catwalk and Access ladder is set to trailer. There will be 2 or 3 pcs of manhole as 450 mm diameter Valves will be ball valve Chassis is produced with 160 NPU Unloading Compressor: 2 Head, 4 Cylinder, Refurbished Diesel Deutz engine, 10.200 Lt/minute unloading capacity
