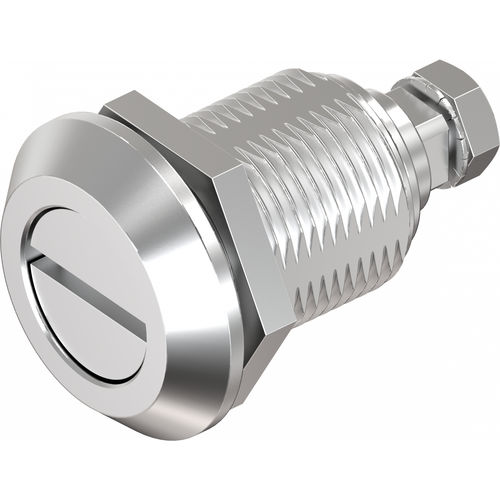

Compression latch 1000-U777-01

stainless steelfire protectionfor cabinets

The compression latch is designed to be vibration-proof as such. Depending on the installation location and operational conditions, specific checks are necessary and/or supplementary measures of fastening required. Properties Door version - Right, Left Inserttype - Slot 2x4 Lockingset - Insert Standards - DIN EN 61373 (shock and vibration testing), DIN EN 4S54S-2 dass E20 (fire protection). Protection dass IP69K Foamed gasket - Yes Housing head shape Round Lockingcomponent - Cam Length of housing (GH) 31.00 mm Suitable for door thickness 1,50mm from Dimension GH, length of 31.0 mm housing Compression value - 6 mm Quarter turn type - Compression latch with insert Fixing type of housing - nutfixing Material of the module - Stainless Steel AISI316 Housing head size - 32x6 mm Mounting position - Inside the seal ing Numberof possible locking - 1 point points Suitable for door thicknesses 20.00mm upto Producttype - Quarter turn
