Easy Access to Control Process for :
Layer ; Egg production
Broiler ; Chicken production for excellent quality meat
Breeder ; Mother and father growth for broiler and layer
Control Card - 280x100 mm

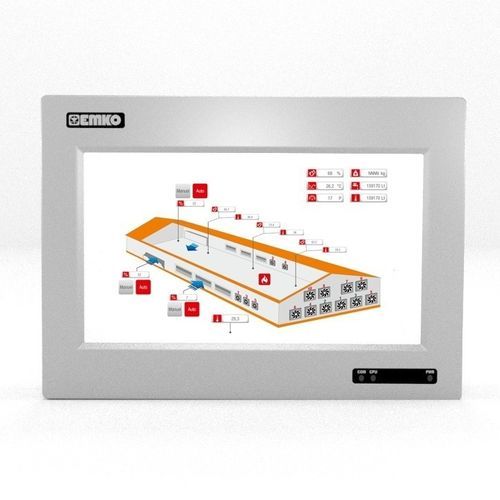

HMI - 278 X 200 MM
Weight / HMI - 1300 G, Control Kartı / 616 g.
Environmental Ratings - Standard, indoor at an altitude of less than 2000 meters
With none condensing humidity.
Storage Temperature / Operating Temperature - -20ºC to +60ºC
Storage Humidity / Operating Humidty - 90% max. (None condensing)
Installation - Fixed installation.
Over-voltage Category - II.
Pollution Degree - II. Office or workplace, non conductive pollution.
Operating Conditions - Continuous
Device Supply Voltage and Power - 18 VAC (-%15 / +%10) 50/60 Hz. 25 VA
24 VDC (-%15 / +%10) 20 W
(for HMI + 1 pc. Control Card)
Temperature Sensor Inputs - PT-100 (IEC751)(ITS90), 0-10 V, 0-20 mA
Accuracy - ± %0,25 of full scale
Sensor Break Protection - Upscale
Reading Frequency - 600 ms
Input Resistance - for Pt100 input time >10MOhm
for 0-10 V input time 17 kOhm
for 0-20 mA input time 470 Ohm
Outputs - Relay, 0-20 mA and 0-10 V
Analogue Output - 0-20mA, 0-10V (max. 3 mA)
Relay Output - Resistive Load 10A@250VAC
Electrical Life - 50.000 operation-Full Load
Standard Communication - RS-232 (Modbus RTU)
Optional Communication - 10Mbits/s Ethernet (Modbus RTU Over TCP/IP-Modbus RTU TCP/IP)
'1500 VAC isolated'
Display - 1024 X 600 pixel TFT
Uyumlu Standartlar - CE, EAC
