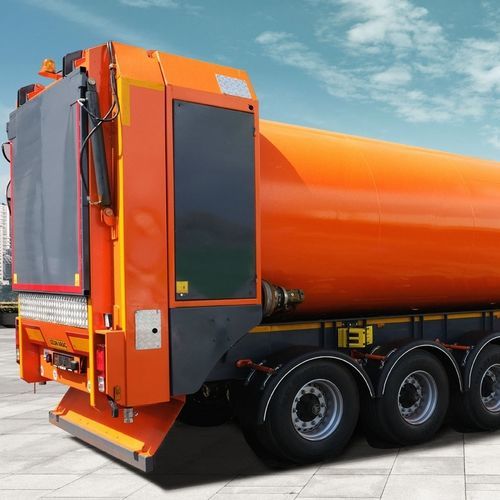

Semi-trailer with waste compactor

rotary drumfor waste3-axle

The Roundpres rotopres is a continuously compacting garbage truck. A massive rotating drum compacts and stores the garbage. The outer edge of the drum acts as the loading hopper, and paddles on the drum convey the waste around an auger of decreasing pitch until it is small enough to be forced through a small ring-shaped gap between the drum and the auger, where it then enters the main section of the drum, which has helically shaped internal paddles which move the now-crushed waste towards the front of the vehicle.rotopres When emptying the drum, the direction of rotation is reversed. TECHNICAL INFORMATION DIMENSIONS Vehicle Length 6,000 – 13,600mm Vehicle Height 3900mm Width 2490mm Axles 3x9 -3X12 tons single tire with air suspension Tire and Rim 6 tires and wheels, size 385/65R 22.5. ABS-EBS Modulator 2S2M EBS Modulator Electrical System 24 volt lighting system in accordance with ECE R48 regulation. Paint After sandblasting, double coat epoxy primer, double coat full acrylic oven paint. Chassis Strenx® 700MC material 4 mm and 6 mm thick Drive gear and return bearing bolted connection to the rear of the roller Metal ring mounted on the tube on carrier wheels at the front Cover Opening Filling and discharge door hydraulically opens Back Cover The part of the back cover that touches the garbage HARDOX or EQUIVALENT 400-450 CHASSIS I profile Top and bottom flats 120x12 ST52 ( S355 ), mirror plate 6 mm Strenx® 700MC Chassis Cross Country Chassis main crosses 6 mm Strenx® 700MC, other crosses ST52 material Buffer Specially designed E-certified bumper.
