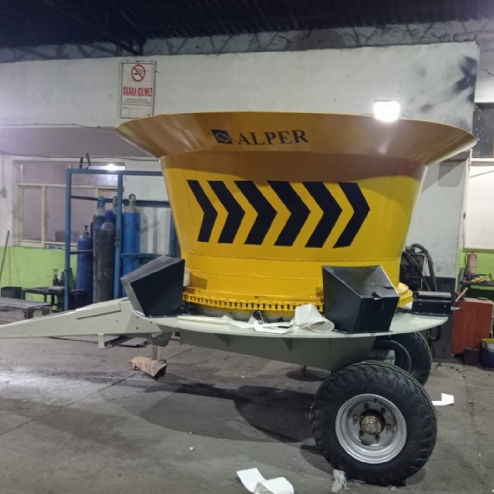

Mobile waste crusher-shredder TG 4000

TG 4000 / TG 4000-1 4M³ - 55KW TUBGRINDER TECHNICAL SPECIFICATIONS WORK CAPACITY BASED ON FEED: CORN STALK, CORN COB, GREENHOUSE WASTE, COTTON STALK, ETC. AGRICULTURAL WASTE (TONS/HOUR) 4 TON - 6 TON - BRANCH PRUNING WASTE, VINE STICK (TONS/HOUR) 1 TON - 3 TON - COVER BOARD, CARPENTER WASTE, NAIL-AND-NO NAIL PALET WASTE (TONS/HOUR) 1 TON - 3 TON - PAPER, PLYWOOD 2 TON - 4 TON - MDF WASTE, PARTICLEBOARD WASTE, TREE BARK (TONS/HOUR) 2 TON - 4 TON - BOOK, BOBBIN, MEASURING TAPE 2 TON - 4 TON - CARDBOARD, BOX 1 TON - 3 TON Knife System There are 54 swinging knives and 4 fixed knives, and the knives are Hardox 550 (55 HRC). Knife Lifespan Depending on the type and cleanliness of the broken product, the capacity ranges from 520 tons to 3,120 tons. Drum Rotation System The unit motor is 7.5 kW / 10 HP, with 2 hydraulic motors of 200CC each. It rotates with a female chain system and is centered with nylon wheels. Rotor Features Rotor diameter: 950mm Rotor length: 300mm - Stress Management When dense material arrives, the feeding slows down. In products that make it difficult for the drum to rotate, the drum automatically reverses when it gets stuck. In necessary products, the drum rotation system turns both right and left with a time-adjusted system. Discharge Conveyor 80cm * 570cm Rubber Belt Closed tunnel-type cabin to prevent dust and light materials from flying. 5.5KW electric motor with reducer. Machine weight: 3500KG
