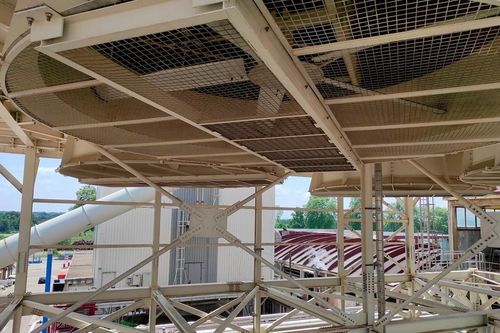

Air-cooled condenser

steamsimpledouble

Overview
Condenser tubes feature single-row aluminum finned surfaces brazed directly onto the tube and are cooled by air. This design removes the need for cooling water in the system’s main recondensing circuit and is suitable for installations with limited water availability or where water-use permits are restricted.

Description

• ENDEVION can supply spare parts for the following components:
• tube bundles with fins (single-row / multiple-row)
• ventilation system (fans, motors, gearboxes, drive shafts)
• condensation system and vacuum units
• washing and cleaning systems
• various accessories (rupture discs, vibra-switches, expansion joints, etc.)

Advantages of ENDEVION ACC

• No water is required to recondense exhaust steam.
• No steam plumes that risk freezing on roads or nearby structures.
• Reduces dependence on water resources and avoids related landscape and permitting impacts.

Technical specifications

• Condenser tube construction: single-row aluminum finned surfaces brazed directly to tube.
• Cooling medium: air-cooled (no water required for main recondensing).
• Suitable applications: systems with limited water availability or where water-use permits are difficult to obtain.
• Spare parts availability: tube bundles (single-row / multiple-row), fans, motors, gearboxes, drive shafts, condensation and vacuum units, washing/cleaning systems, rupture discs, vibra-switches, expansion joints, and other accessories.
• Operational benefits: eliminates need for cooling water, prevents steam-plume freezing, and minimizes water-related environmental and landscape impacts.
